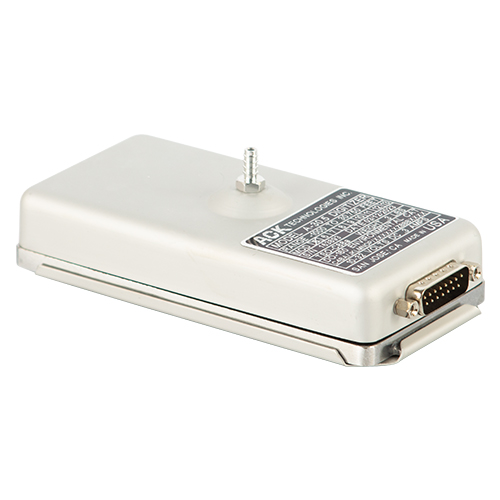

A-30.5 Altitude Encoder | Gray Code 30,750ft
ACK TECHNOLOGIES
EDMO#: A-30.5
MFR#: A-30.5
Description
The model A-30 digitizer is designed to work with all modern mode A/C and mode S transponders. In mod 4 through mod 7 configurations, the digitizer reports to 30,750 feet and provides parallel grey code output. The mod 5 and mod 9 configurations are plug compatible with all earlier mod 1 through 4, and mod 8 digitizers with serial numbers 2,400 through 120,499.
This digitizer (EDMO# A-30.5) includes a quick release mounting tray, 4 foot harness, 4 foot static line, installation manual.
Features
- Provides gray code to 30,750 ft
- Plug compatible with earlier models
- Drop-in replacement for most model A-30 encoders
- FAA TSO C-88a
Specifications
Weight:
5.1 oz (144 g)
Dimensions (L x W x H):
6 x 2.65 x 1.3 in
Range (mod 5):
950 to 30,750 ft
Accuracy:
± 20 ft, typical
±50 ft, maximum
Operating Current:
160 mA, typical
Warm-up Current Draw:
14 VDC 160 mA
28 VDC 220 mA
Warm-up Time:
70°F ambient 60 seconds (0°C ambient 210 seconds)
Operating Voltage:
10 VDC to 32 VDC
Operating Temperature:
-4°F to 131°F (-20°C to 55°C)
Altitude Resolution:
grey code (parallel) output 100 ft
Approvals:
FAA TSO C-88a
German LBA 10.221/4
Product Codes
Mfr Part No :
A-30.5
ECCN :
7A994
PROAPP :
PT0880NM
SCHEDULE B CODE :
9014.20.6000
TSO :
C88a
