ELT 4000S | Portable Survival ELT

ACR ELECTRONICS / ARTEX

Call For Pricing

Available to order

EDMO # A3-06-3168

MFR Part # A3-06-3168

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

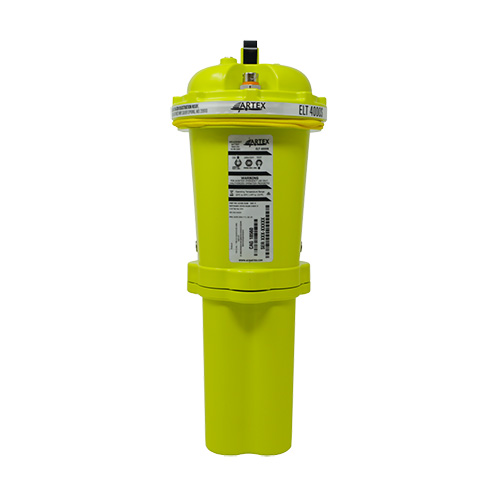

The ARTEX ELT 4000S is a portable Survival(S) ELT that transmits on 121.5 and 406 MHz that is exempt from TSO C142/DO-227 approval due to the innovative alkaline battery powered system. The ELT transmitter is based on the ARTEX ELT 4000 system and represents the latest ELT transmitter technology with a Lithium-free battery in a survival beacon saving operators in hazmat shipping fees. The ARTEX ELT 4000S is buoyant and automatically activates when deployed in water. A manual activation switch is also included for land use. An internal GPS (GNSS) will acquire position data for inclusion in the 406 MHz transmission, and a lanyard allows for attachment to a life raft.

Features

Rugged design with built-in buoyancy (no float collar)
Integrated GPS
Alkaline battery (exempt from TSO C142/DO-227 approval)
Five-year user replaceable alkaline battery system (on wing)
Special Condition exempt, no Hazmat shipping
Simple bracket for easy one-handed deployment
Compatible with existing ARTEX handheld programmers
Left and right-handed bracket configurations available

Specifications

Weight:

7.7 lbs
Dimensions:

6.2 x 5.42 x 14.7 inches
Battery:

5 year alkaline
Operating frequencies:

406.031 MHz (+/- 1kHz) / 121.5 MHz (+/- 0.005%)
Emission Designators:

16KOG1D (406.031 MHz) / A3X (121.5 MHz)
Output Power:

406 MHz: EIRP 5 W (37 dBm) for 24 hours @ -20°C to +55°C / 121.5 MHz: EIRP min 100mW (min 20 dBm) for 50 hours @ -20°C to +55°C
