AA39 Series Headset Adapter | Single Dynamic Mic to Civil Aviation

Product Description

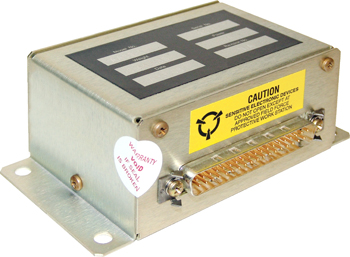

The AA39-187 is a single military headset adapter, consisting of a 5Ω dynamic mic to civil aviation 150Ω mic adapter, with an 8Ω to 600Ω transformer for phones matching. The AA39-187 is a small, remote mounted metal unit with a D-sub connector. Designed to operate from standard mic bias, supplied by the aircraft radio and intercom system.

Specifications

• Specification
  Weight: 0.35 lb / 0.16 kg
• Specification
  Input signals
• Specification
  Mic bias: Nominal Bias Voltage: +12 Vdc Maximum Bias Voltage: +16 Vdc Minimum Bias Voltage: +9 V
• Audio level:
  250µ Vrms for mic input 7.7 Vrms for phones input
• Input current:
  10 mA Max. @ Min Bias Voltage
• Impedance:
• Specification
  5Ω ± 1Ω for mic input 300Ω ± 10 % for phones input
• Circuitry type:
• Specification
  Balanced input for mic Balanced transformer input for phones
• Gain:
• Specification
  Min. 1000 or 60 dB for mic amplifier Min. 8.5:1 ratio for phones transformer
• Circuitry Type:
  Single ended output for mic Balanced transformer output for phones
• Frequency response:
• Specification
  < 3 dB from 350 Hz to 6000 Hz. for mic channel < 3 dB from 350 Hz to 6000 Hz. for phones channel
• Distortion:
  < 10% THD @ Rated power output < 3% THD @ 10% Continuous output
• Audio Noise Level:

Product Codes

• Mfr Part No
  AA39-187
• ECCN
  7A994
• SCHEDULE B CODE
  8518.40.2000
