AA95-1000 Multi-User Audio Controller | TSO

CANYON AEROCONNECT

Call For Pricing

In stock

EDMO # AA95-1000

MFR Part # AA95-1000TSO

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

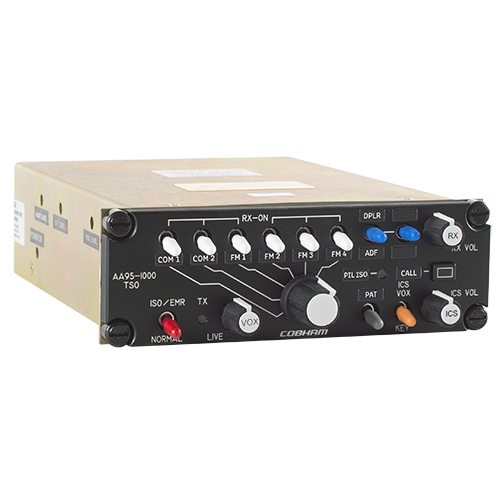

The AA95-1000 is a multi-user audio controller for use in a variety of fixed- and rotary-wing aircraft cockpit panels. The AA95 provides ICS and LIVE/Keyed/VOX modes for pilot, copilot, and four passengers. This audio controller also provides inputs for five transceiver positions with PA, six switched NAV inputs, ICS tie line, two tape inputs, and two direct inputs.

The unit can be customized for a variety of special mission configuration. Customizable panel snap-in legends, lighting, knobs, transceiver configuration, ICS call function, and internal alert generators can be configured for flight crews, EMS medical crews, law enforcement, and ENG operators. A lightweight and compact design allows the the AA95-1000 to be mounted using Dzus or quarter-turn fastening rail system.

Snap-in legends sold separately. Requires 13 legends for each unit (see part# 55-08-XXX). Legend kits available for the AA95 series (AA95LK-XXX). Call for more information or questions.

Features

Provides ICS and LIVE/Keyed/VOX modes for pilot, copilot, and four passengers
Provides inputs for five transceiver positions with PA, six switched NAV inputs, ICS tie line, two tape inputs, and two direct inputs
Customizable for a special mission configurations
Snap-in legends allow OEMs and installer to customize the AA95 to best suite the NAV/COM package

Specifications

Weight:

2.1 lb (955 g)
Dimensions:

1.88 x 6.83 x 4.99 in (47.6 x 173.4 x 126.7 mm)
Temperature:

-20°C to 55°C, operating -55°C to 85°C, survival
Altitude:

25,000 ft, maximum
Humidity:

95%
Shock:

6G (any axis)
Vibration:

RTCA/DO-160C Categories P and S
Input Power:

27.5 VDC @ 0.5A, nominal
Lighting:

27.5 VDC @ < 1 mA
Input signals channels:

11 receive channels 7 mic channels 1 ICS channel 1 direct channel
Input Keylines:

Pilot & copilot transmit PTT Rear hand mic transmit PTT Pilot & Copilot ICS PTT 2 Alerts, active low 1 call switch output with chime 1 call/ISO indicator input
Output Signals channels:

6 headset outputs 6 transmit mic outputs 5 transmitter keyline outputs
Distortion:

<10% THD @ rated power
Audio Noise Level:

>60 dB down from rated level (without signal)
Coupling:

< -55 dB
Output regulation (at 400% & 75% rated load):

<10% distortion / ∆3 dB max. of rated power
Annunciators:

Green LED will light for transmit operation Green LED will light for CALL or ISO operation
Approval:

FAA: TSO-C50c (RTCA/DO-170 Class Ia, RTCA/DO-160 A & C)
