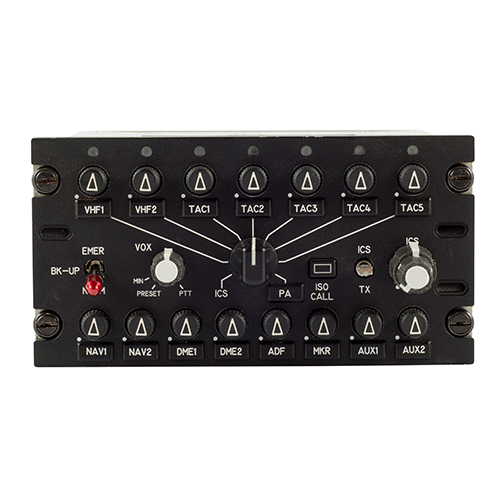

ACP54 Digital Audio Control System | 28 V, NVIS Green B Faceplate

Product Description

Canyon’s Digital Audio Control System (DACS) is a flexible solution designed to fit the needs of mid- to large-size helicopters and a range of fixed-wing aircraft, performing a broad range of missions. It is software-configurable to the exact audio distribution, control and warnings needed to meet each aircraft’s unique mission. Removable legends permit operators to quickly and inexpensively adapt radio updates over an aircraft’s lifetime.

DACS is a fully-digital audio processing and control system that provides the most crisp and clear audio quality in our industry. When compared to traditional analog system installations, DACS provides a dramatically simplified installation with reduced wiring and maintenance costs. DACS also provides improved performance with more features, reduced crosstalk, and higher immunity to noise.

This DACS (EDMO# ACP54-001) is compatible with 28-Volt lighting only and has an NVIS Green B faceplate.

Specifications

• Power:
  27.5 VDC, 2.5A (nominal)
• Microphone Inputs:
  7 inputs, 3 impedances selectable: 5 Ω (250 uV rms), 75 Ω (850 uV rms), 150 Ω (250 mV rms)
• Headphones:
  7 outputs, 3 impedances available: 8 Ω (250 mW), 150 Ω (250 mW), 600 Ω (250 mW)
• Radio Audio Inputs:
  16 inputs, 1 to 20 Vrms input range,1000 Ω input impedance
• Radio Mic Outputs:
  8 outputs, 50 mV rms to 1 V rms output range, < 60 Ω output impedance
• Radio PTT Outputs:
  8 outputs, active Lo
• Direct Audio Inputs:
  6 inputs, fixed audio output levels, 1-15 V rms input range, 600 Ω input impedance
• CVR Outputs:
  2 CVR outputs, 1 for pilot and 1 for co-pilot, < 600 Ω output impedance, 500 mV rms output
• Aural Warnings:
  8 internal alerts, messages are .WAV files, assigned by configuration management software; can be active Hi or Lo
• DF Blanking Output:
  1 blanking output, active Lo
• Music Inputs:
  2 inputs, 2 input ranges - 400 mV rms or 2.5 V rms, 1000 Ω input impedance
• ACP/AMU Protocol:
  RS-422
• Lighting:
  5/28 V standard, 5 V optional, NVIS compliant versions optional

Product Codes

• Mfr Part No
  ACP54-001
