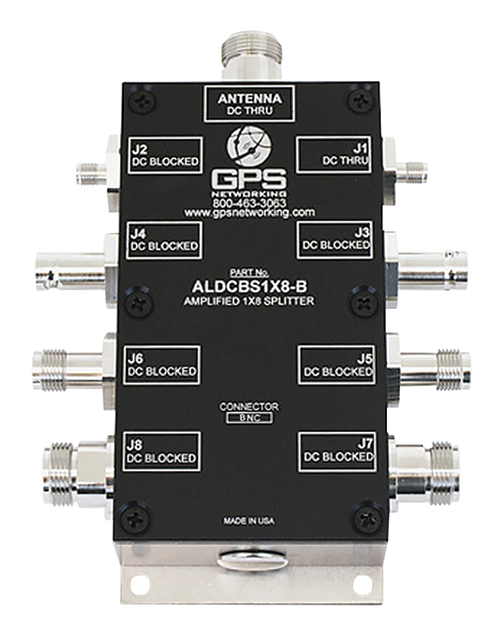

Amplified GPS Antenna Spltter | 8 outputs, 1 input, BNC connectors

GPS NETWORKING

Call For Pricing

Available to order

EDMO # ALDCBS1X8B

MFR Part # ALDCBS1X8-BNC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The ALDCBS1X8 GPS amplified splitter has one input and eight outputs and is based on the Wilkinson splitter design. The frequency response covers the entire L-band (GNSS) frequencies with excellent gain flatness. In normal configuration, the RF output (J1) passes DC from a connected GPS receiver through the splitter and onto the antenna. This allows the GPS receiver to power both the antenna and the splitters internal amplifier. Each RF output (J2-J8) are DC blocked and incorporates a 200 resistor to simulate the antenna current draw preventing false antenna alarm faults.

This ALDCBS1X8 GPS amplified splitter (EDMO# ALDCBS1X8B) includes one input and eight outputs each with BNC connectors.

Features

Excellent gain flatness for all GNSS frequencies
Provides a typical amplifier gain of 14 dB
Extremely flat group delay with a variation less than 1 ns
Phase matched outputs (less than 1.0)
Prevents antenna alarm faults from connected devices with 200 DC blocked output

Specifications

Specification

Weight: 10 oz (286 g)
Dimensions:

1.3 x 5.25 x 2.5 in, not including connectors
Operating Temperature:

-40°C to 75°C
Finish Housing and Base Plate:

Electroless nickel plated MIL-C-26074C class 1, 0.0001 to 0.0003 max
Finish Lid:

Anodize, TYPE II, class 2, black, per MIL-A-8625
Frequency Range:

1.1 to 1.7 GHz
Impedance:

50Ω
Gain:

13 t0 15 dB, 14 dB typical
Input SWR:

2.0:1
Output SWR:

1.5:1
Noise Figure:

3.8 dB typical, 4.3 maximum
Gain Flatness:

0.5 dB typical, 1.5 dB maximum
Amplitude Balance:

0.5 dB
Phase Balance:

1.0°
Isolation:

15 to 25 dB, 20 dB typical
Group Delay Flatness:

1 ns
Pi dB:

-18 dB
Current Draw:

15 mA
