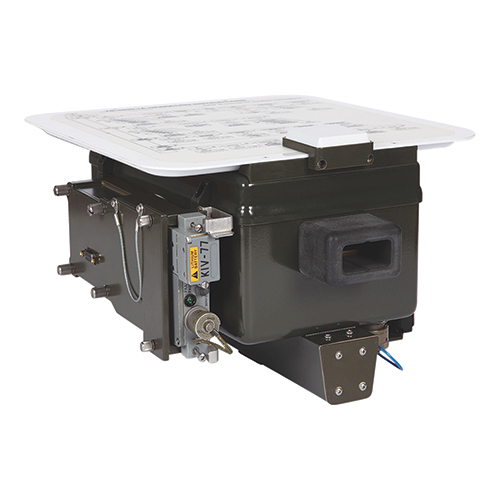

APM-424(V)5 MK XIIA Flight Line Test Set | with KIV-77 Adapter

VIAVI

Call For Pricing

Available to order

EDMO # APM-424V5

MFR Part # 86335

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AIMS certified APM-424 or U.S. Military TS-4530 Test Set easily accommodates a variety of aircraft and ground/shipboard platforms to test transponder and interrogator performance, including Mode S Elementary and Enhanced Surveillance, as well as growth to Mode 5. The test set is ruggedized and has passed all military requirements for safety and environmental conditions. The APM-424V5 supports both DoD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77) crypto appliqués.

This APM-424 MK XIIA test set (EDMO# APM-424V5) includes the KIV-77 adapter.

Features

DoD AIMS 03-1000A Mark XIIA (Mode 5 level 1 and 2) certified *
Transponder Test Set Modes 1, 2, 3/A, C, 4, S, and Mode 5 * (Level 1 & 2)
Mode S Elementary and Enhanced Surveillance
Interrogator Test Set Modes 1, 2, 3/A, C, 4, S, TCAS, ETCAS and Mode 5 * (Level 1 & 2)
Self-diagnostic
Factory upgrade kits available for APM-424(V)3 and TS-4530 units
Comes with KIV-77 adapter

Specifications

Weight:

12.25 lb (5.6 lb), test set with battery
Dimensions:

7.5 x 11.5 x 14.1 in (27 x 11.5 x 14.1 in), test set only
Temperature:

-40° to 55°C (-40° to 131° F), operational -55° to 85°C (-67° to 185° F), storage
Certifications:

MIL-PRF-28800F, Class 2 MIL-STD-810F DoD AIMS MK XIIA Level 1 and Level 2
