APM-424(V)5 MK XIIA Flight Line Test Set | with KIV-77 and KIV-78 Adapters


VIAVI

Call For Pricing
Available to order
EDMO # APM424V5
MFR Part # 91067
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

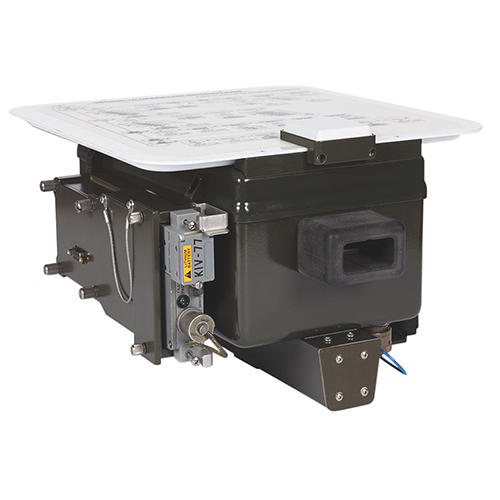

The APM-424(V)5 accommodates a variety of aircraft, ground, and ship platforms for testing transponder and interrogator performance. The APM-424(V)5 is a Mode 5 and ADS-B performance and capability upgrade to the TS-4530 and APM424 legacy test sets. The unit closely replicates legacy operation for utilization of existing procedures, making the APM-424(V)5 a cost effective, highly accurate upgrade to fielded test sets.

This APM-424(V)5 (EDMO# APM424V5) supports both DoD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77) crypto appliqués.

Features

  • DoD AIMS 03-1000A (Change Notes 1,2,3) Mark XIIA certified
  • Supports DoD AIMS 04-900A Option A - KIV-78 and Option B - KIV-77, & SIT-2010 crypto appliqués.
  • Transponder Test Modes 1,2,3/A, C, S (EHS/ELS), 4, Mode 5 (Level 1 and 2)
  • Interrogator Test Modes 1, 2, 3/A, C, S, 4, Mode 5, TCAS, ETCAS (Level 1 and 2)
  • DO-260B compliant; ADS-B Out test capability
  • Mode 5 TX/RX pulse measurement
  • Mode 5 squitter data
  • Mode 5 data acquisition formats 0-23
  • TS-4542 Shipboard Interrogator test capability
  • ADS-B Out testing
  • KIV-77 & SIT-2010 support
  • KIV-78 support

Specifications

  • Weight:
    12.25 lb (5.6 lb), test set with battery
  • Dimensions:
    7.5 x 11.5 x 14.1 in (27 x 11.5 x 14.1 in), test set only
  • Temperature:
    -40° to 55°C (-40° to 131° F), operational -55° to 85°C (-67° to 185° F), storage
  • Certifications:
    MIL-PRF-28800F, Class 2 MIL-STD-810F DoD AIMS MK XIIA Level 1 and Level 2

Product Codes

  • Mfr Part No
    91067
  • OLD MFG #
    APM-424(V)5
  • SAP
    91067
