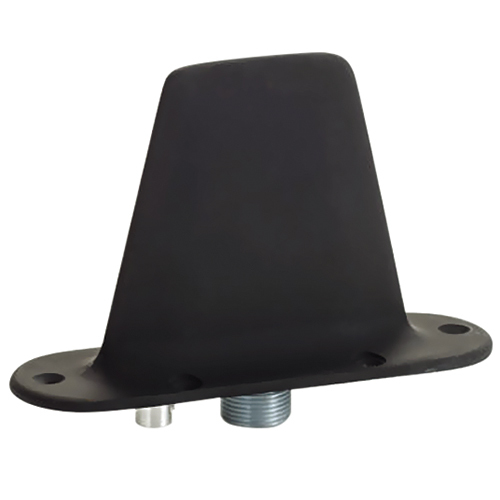

AT-741B/B Identification Beacon Antenna | 960–1220 MHz

ANTENNA/L-Band Tacan Identification Beaon, 960-1220 MHz, 50 Ohms, Black, operating temperature: -67 degrees Fahrenheit to 300 degrees Fahrenheit, static load of 15 PSI perpendicular to blade.

RAMI

Call For Pricing
In stock
EDMO # AT-741/B/B
MFR Part # AT-741B/B
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AT-741B/B is an identification beacon antenna designed for use with Radar Interrogation. The antenna is constructed from an aluminum casting that is capable of withstanding particle erosion to speeds of up to Mach 2. This antenna is produced to Military Specifications MIL-DTL-25708 and is qualified environmentally to Military Standard MIL-STD-810.

The AT-741B/B antenna operates within a temperature range of -67°F to 300°F and can withstand a static load of 15 psi perpendicular to the blade. The antenna is operational to altitudes of 100,000 ft and is finished with a Skydrol resistant lusterless CARC black coating.

Features

  • Designed for use with Radar Interrogation
  • Constructed from an aluminum casting
  • Finished with a Skydrol resistant lusterless CARC black coating
  • 960-1220 MHz frequency range

Also Purchased

Specifications

  • Max. Weight:
    0.5 lb
  • Application
    : Tacan, Identification Beacon
  • Frequency
    : 960–1220 MHz
  • Impedance
    : 50 Ohms Nominal
  • Gain
    : -0.5 dBmp
  • VSWR
    : 1.4:1 Maximum (Antenna) 1.5:1 Maximum (Sample Probe)
  • Polarization
    : Vertical
  • Pattern
    : Omnidirectional
  • RF Power Capacity:
    4 kW Peak, 0.1 kW Continuous
  • Probe Attenuation:
    19.0 ± 3.0 dB
  • Color
    : CARC Black

Related Products

Product Codes

  • Mfr Part No
    AT-741B/B
  • MIL SPEC
    M25708/1-01
  • ECCN
    7A994
  • MIL SPEC
    M25708/1-01
  • NSN
    5985-00-106-0906
  • SCHEDULE B CODE
    8526.10.6000
