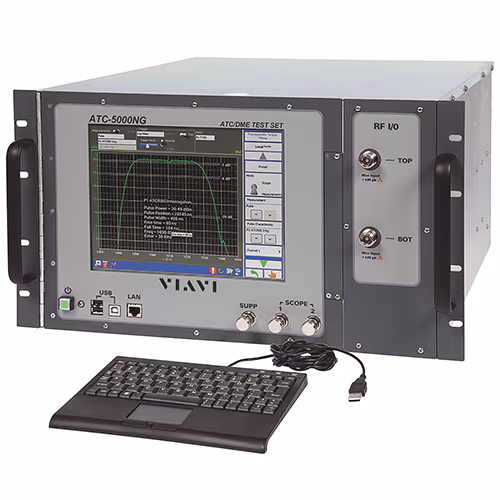

ATC-5000NG NextGen Transponder DME Test Set and ADS-B Target Generator


VIAVI

EDMO#: ATC-5000NG

MFR#: 138156

Description

The ATC-5000NG NextGen Transponder/DME test set and ADS-B target generator is an RF signal generator/receiver for testing Modes A/C/S transponders. Designed with modern software defined radio technology, the ATC-5000NG replaces the commercial functionality of the SDX-2000, ATC-1400A, and S-1403DL. This test set is designed for engineering development, design validation, manufacturing, and return-to-service testing.

Features

  • Generates ATCRBS/Mode S interrogations
  • 10.4 inch touch screen LCD display for operator control of all test set capabilities
  • Remote controlled via GPIB or Ethernet
  • Optional Command set emulation for SDX-2000, ATC-1400A and S-1403DL
  • Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes
  • ADS-B squitter encode/decode
  • DO-260, DO-260A and DO-260B data parsing
  • Two independent transmitters and receivers
  • TX/RX data logging capability
  • Full diversity testing capability
  • Data parsing in engineering units
  • Pulse and frequency measurement
  • UAT TX/RX capability (optional)

Specifications

Weight:
44 lb (19.95 kg)

Dimensions:
10.5 x 19 x 16.5 in (26.67 x 48.26 x 41.91 cm)

Inputs/Outputs:
Suppression bus (front/back)
2 scope BNC outputs (front/back)
LAN (front/back)
USB type B control (front)
2 USB type A (front) for HID/flash drives

Full Specified Performance Temperature:
23±5°C

Operating Temperature:
0°C to 45°C

Storage Temperature:
-30°C to 85°C

Relative Humidity:
0% to 95% non-condensing

Transmitter Frequency:
Range: 952 MHz to 1,223 MHz
Resolution: 10 KHz
Accuracy: 2.5 ppm
Phase Noise: >80 dBC/Hz @ 100 KHz

TRANSMITTER POWER:

Range (transponder):
+5 dBm to -110 dBm
Resolution: 0.1 dB
Accuracy: ±1 dB [+5 to -100 dBm], ±3 dB [< -100 dBm], @ 1,030 MHz

Range (UAT):
+5 dBm to -110 dBm
Resolution: 0.1 dB
Accuracy: ±1 dB @ 978 dBm

Range (DME):
+5 dBm to -110 dBm
Resolution: 0.1 dB
Accuracy: ±1 dB [< -100 dBm], ±3 dB [< -100 dBm], 952 to 1,223 MHz

Special Purity:
Harmonics: >50 dBc
Spurious: >55 dBc, 350 to 1,800 MHz
Residual FM: 250 Hz Peak

Number of Channels:
4 (XPDR/UAT)
6 (ADS-B Options)

RECEIVER:

VSWR:
<1.4

Max Input Power:
+60 dBm

Receiver Decoding:
Messages: ASTCRBS interrogation and replies, Mode S interrogations and replies, UAT ground and airborne messages [UAT Option]

Dynamic Range:
1,090 MHz: >40 dB
UAT: >30 dB

Number of Channels:
2, Top/Bottom

Product Codes

Mfr Part No :

138156

OLD MFG # :

ATC-5000NG

SAP :

138156

ECCN :

7B994

SCHEDULE B CODE :

9030.40.0000
