ATC-5000NG | SDX Command Set Compatibility Option

VIAVI

Call For Pricing

Available to order

EDMO # ATCNGOPT04

MFR Part # 138158

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

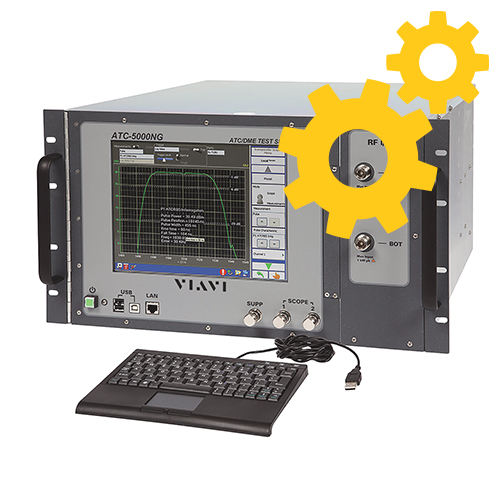

The ATC-5000NG is an RF signal generator/receiver for testing Modes A/C/S transponders. Designed with modern software defined radio technology, the ATC-5000NG replaces the commercial functionality of the SDX-2000, ATC-1400A, and S-1403DL. This test set is designed for engineering development, design validation, manufacturing, and return-to-service testing.

Features

Generates ATCRBS/Mode S interrogations
10.4 inch touch screen LCD display for operator control of all test set capabilities
Remote controlled via GPIB or Ethernet
Optional Command set emulation for SDX-2000, ATC-1400A and S-1403DL
Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes
ADS-B squitter encode/decode
DO-260, DO-260A and DO-260B data parsing
Two independent transmitters and receivers
TX/RX data logging capability
Full diversity testing capability
Data parsing in engineering units
Pulse and frequency measurement
UAT TX/RX capability (optional)
Includes SDX command set compatibility option
