ATUM Adhesive-Lined Polyolefin Tubing | 3:1, 12/4, Black

EDMO

Call For Pricing

Available to order

EDMO # ATUM-12/4-

MFR Part # ATUM-12/4-0-MS-STK

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

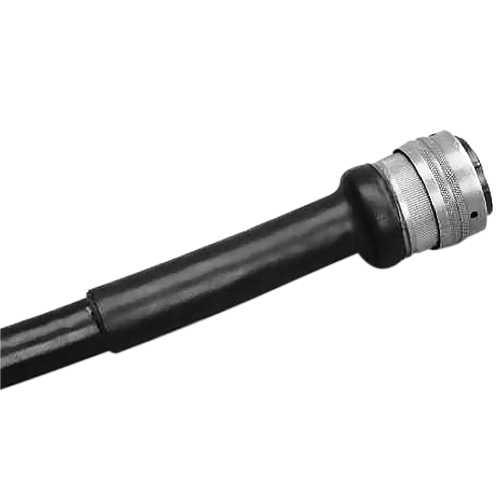

ATUM adhesive-lined polyolefin tubing has a high-shrink-ratio to environmentally seal and protect electrical connections and components. This heat shrink tubing is useful for applications include: backend connector sealing, breakouts, and connector-to-cable transitions. The high expansion ration is perfect for repairing most damaged cable jackets without removing the connectors.

Features

Available in 3:1 and 4:1 shrink ratios for connecter-to-cable sealing
Environmentally seals and protects components and interconnects
Medium wall provides increased mechanical protection
Adhesive bonds to wide variety of plastics, rubber, and metals; including polyethylene, aluminum , steel, and copper
RoHS compliant

Specifications

Length:

4 ft (1.22 m)
Size:

12/4
Shrink ratio:

3:1
Minimum Expanded I.D.:

12.0 mm (0.472 in)
Maximum Recovered I.D.:

4.0 mm (0.157 in)
Total wall thickness:

1.78 ± 0.38 mm (0.070 ± 0.015 in)
Adhesive wall thickness:

0.76 mm (0.030 in)
Operating Temperature Range:

-55°C to 110°C (-67°F to 230°F)
Installation:

minimum shrink temperature: 80°C (176°F) minimum full recovery temperature: 110°C (230°F)
Color:

Black
