ATUM Adhesive-Lined Polyolefin Tubing | 4:1, 6/2, Black

RAYCHEM

Call For Pricing

Available to order

EDMO # ATUM-6/2-

MFR Part # ATUM-6/2-0-STK

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

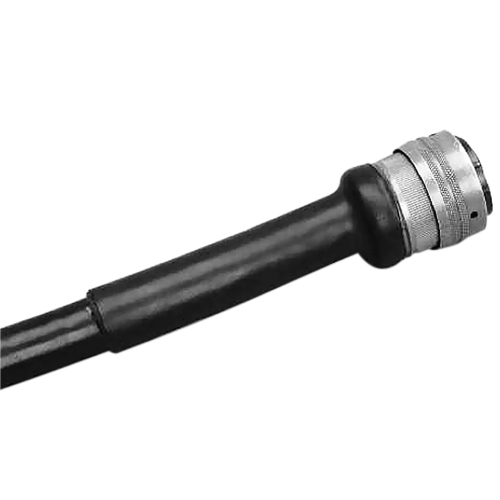

ATUM adhesive-lined polyolefin tubing has a high-shrink-ratio to environmentally seal and protect electrical connections and components. This heat shrink tubing is useful for applications include: backend connector sealing, breakouts, and connector-to-cable transitions. The high expansion ration is perfect for repairing most damaged cable jackets without removing the connectors.

Features

Available in 3:1 and 4:1 shrink ratios for connecter-to-cable sealing
Environmentally seals and protects components and interconnects
Medium wall provides increased mechanical protection
Adhesive bonds to wide variety of plastics, rubber, and metals; including polyethylene, aluminum , steel, and copper
RoHS compliant

Specifications

Length:

4 ft (1.22 m)
Size:

6/2
Shrink ratio:

4:1
Minimum Expanded I.D.:

6.0 mm (0.236 in)
Maximum Recovered I.D.:

2.0 mm (0.079 in)
Total wall thickness:

1.00 ± 0.28 mm (0.039 ± 0.010 in)
Adhesive wall thickness:

0.50 mm (0.020 in)
Operating Temperature Range:

-55°C to 110°C (-67°F to 230°F)
Installation:

minimum shrink temperature: 80°C (176°F) minimum full recovery temperature: 110°C (230°F)
Color:

Black
