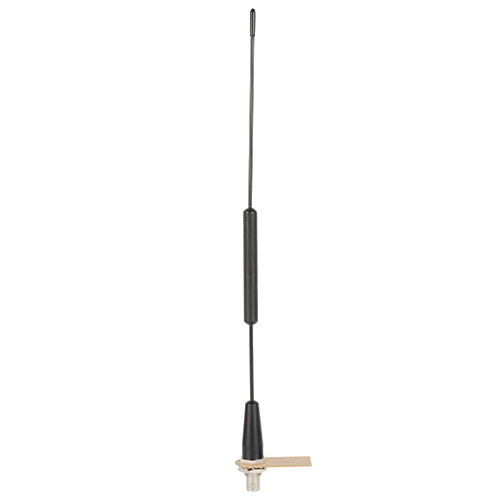

AV-100 ELT Whip Antenna | 121.5 MHz & 406 MHz

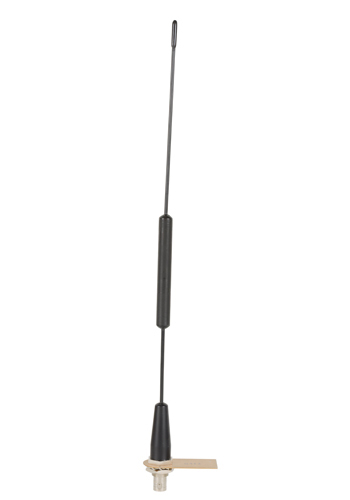

ANTENNA/ ELT, Whip type. 121.5 MHz and 406 MHz, 13.75 length.

R A MILLER INDUSTRIES

EDMO#: AV-100

MFR#: AV-100

Description

The AV-100 airborne antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It has a passive two frequency wire whip, designed for low-speed aircraft (up to 250 knots). This antenna operates at VHF and UHF frequencies.  It has met DO-160G, Section 8, Category U requirements for robust vibration, and is qualified for installation on helicopters with unknown related rotor frequencies.

Features

  • Passive two-band frequency 121.5 and 406 MHz
  • Vertical polarization
  • Omnidirectional pattern
  • BNC connector
  • Black finish

Specifications

Weight:
3 oz.

Frequency:
121.5 MHz
406 MHz

Impedance:
50 Ohms Nominal

VSWR:
121.5 MHz 2.0:1 Maximum, 406 MHz 1.5:1 Maximum

Polarization:
Vertical

Pattern:
Omnidirectional

Connector:
BNC Female

FAA Approval:
TSO-C126a

Color:
Black

Product Codes

Mfr Part No :

AV-100

ECCN :

7A994

SCHEDULE B CODE :

8526.10.6000

TSO :

C126a

Documentation

Notice: EDMO Distributors, Inc. has made every effort to verify the accuracy of the codes, classifications, and part approvals listed in accordance with the Department of Commerce, U.S. Census Bureau, Bureau of Industry and Security, U.S. Department of Defense and Federal Aviation Administration. EDMO Distributors, Inc. does not assume responsibility for errors or omissions. This listing is subject to change without notice.

Warning to Exporters: EDMO Distributors, Inc. does not assume responsibility for errors with any of the Schedule B Commodity Codes or Export Control Classification Numbers in this listing. It is the Exporter's responsibility to research and supply the correct codes and classifications for the product to be exported. Some products may require an Export License in order to be exported.
