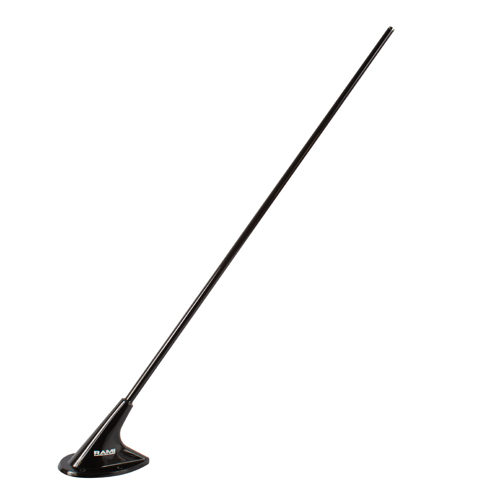

AV-10 VHF Communications Whip Antenna | 118–137 MHz, Black

Product Description

The AV-10 is a communications antenna designed for high-performance aircraft applications. It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base. The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lbs @ 250 mph.

This AV-10 VHF Communications Whip Antenna (EDMO# AV-10GB) is black in color.

Specifications

• Weight:
  8 oz
• Height:
  20.25 in.
• Frequency:
  118–137 MHz
• Impedance:
  50Ω nominal
• VSWR:
  2.0:1 maximum
• Polarization:
  Vertical
• Pattern:
  Omni-Directional
• Connector:
  BNC female
• RF Power Capacity:
  30 Watts
• Color:
  Black
• FAA Approvals:
  TSO-C37d, TSO-C38d

Product Codes

• Mfr Part No
  AV-10GB
• SCHEDULE B CODE
  8529.10.4000

Documentation

• RAMI-Limited-Lifetime-Warranty.pdf
