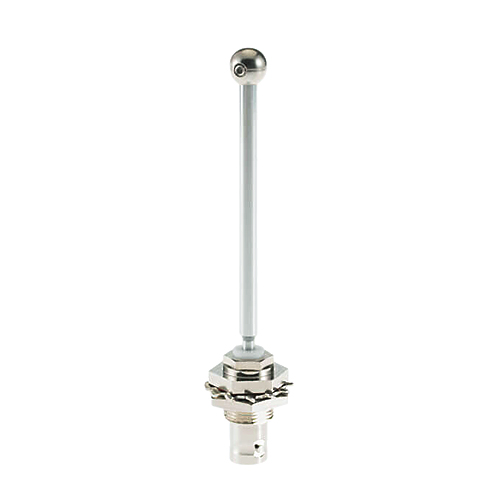

AV-11 Transponder Antenna | 1030–1090 MHz


RAMI

Call For Pricing
Available to order
EDMO # AV-11
MFR Part # AV-11
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-11 transponder antenna is designed for experimental aircraft, similar to the TED 104-12 antenna. This non-TSO antenna features a BNC connector and has a small mounting footprint. It can operate up to speed of 350 mph and altitude up to 50,000 feet.

Features

  • 1030 MHz – 1090 MHz frequency response
  • Speeds up to 350 mph
  • Altitudes up to 50,000 feet
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Weight:
    1 oz
  • Type:
    Transponder antenna
  • Frequency Range:
    1030 MHz — 1090 MHz
  • Impedance:
    50Ω
  • VSWR:
    1.3:1, maximum
  • Polarization:
    Vertical
  • Pattern:
    Omni-directional
  • Connector:
    BNC female
  • RF Power Handling:
    1 KW peak pulse @ 1% duty cycle
