AV-15 UHF Communications Antenna | 450–470 MHz

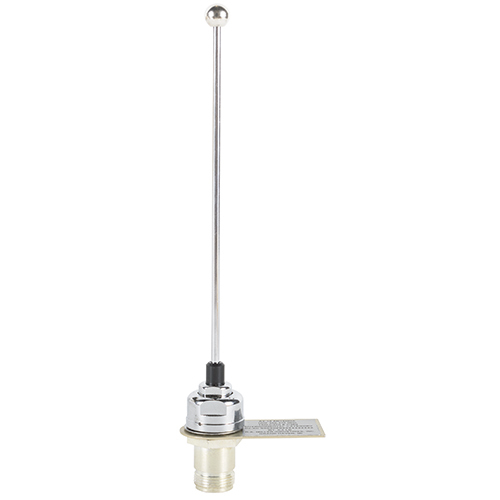

ANTENNA/UHF, 450-470 MHz, N female connector.

RAMI

Call For Pricing
In stock
EDMO # AV-15
MFR Part # AV-15
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-15 is used with aviation, land mobile radio, and flight phone bands. The durably constructed chrome-plated phosphor bronze whip is set in a Teflon insulator and the chrome-plated ball tip provides low noise static discharge. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.75 lb @ 250 mph.

Features

  • Used with aviation, land mobile radio, and flight phone bands
  • 450 – 470 MHz frequency range
  • Vertical polarization
  • Chrome-plated phosphor bronze whip set in a Teflon insulator
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Max Weight:
    2.5 oz.
  • Max Height:
    6.25 in
  • Application
    : Airborne Communications
  • Frequency
    : 450 – 470 MHz
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 1.5:1 Maximum
  • Polarization
    : Vertical
  • Pattern
    : Omnidirectional
  • Connector
    : N Female
  • RF Power Capacity:
    100 Watts
  • FAA Approvals:
    TSO-C37d, TSO-C38d

Related Products

Product Codes

  • Mfr Part No
    AV-15
  • ECCN
    7A994
  • SCHEDULE B CODE
    8526.10.6000
  • TSO
    C37d,C38d
