AV-200-B ELT Whip Antenna | 121.5 MHz & 406 MHz

AV-200-B ELT Whip Antenna | 121.5 MHz & 406 MHz

RAMI

Call For Pricing
Available to order
EDMO # AV-200-B
MFR Part # AV-200(-B)
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

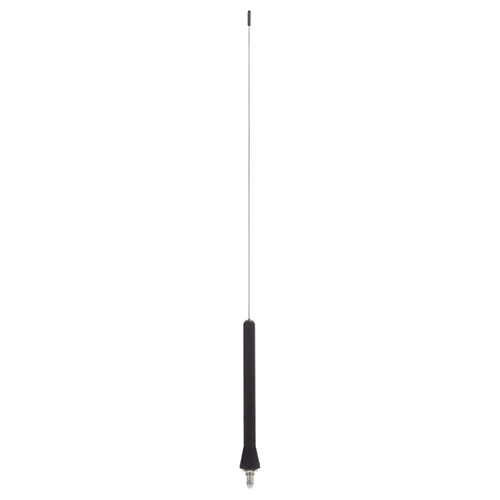

The AV-200 is intended for the use with an ELT (Emergency Locator Transmitter) for general aviation. It is a passive two frequency wire whip antenna, designed for low-speed aircraft (up to 250 knots).

This antenna (EDMO# AV-200-B) is the same as the AV-200, but is black in color.

Features

  • Passive two-band frequency 121.5 and 406 MHz
  • Vertical polarization
  • Omni-directional pattern
  • BNC female connector
  • Black finish
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Weight:
    0.19 lb
  • Height:
    23.38 in.
  • Frequency:
    121.5 and 406 MHz
  • Polarization:
    Vertical
  • Pattern:
    Omni-Directional
  • Connector:
    BNC female
  • RF power handling:
    10 Watts CW
  • Color:
    Black

Related Products

Product Codes

  • Mfr Part No
    AV-200(-B)
  • ECCN
    7A994
  • SCHEDULE B CODE
    8526.10.0010
  • TSO
    C126a
