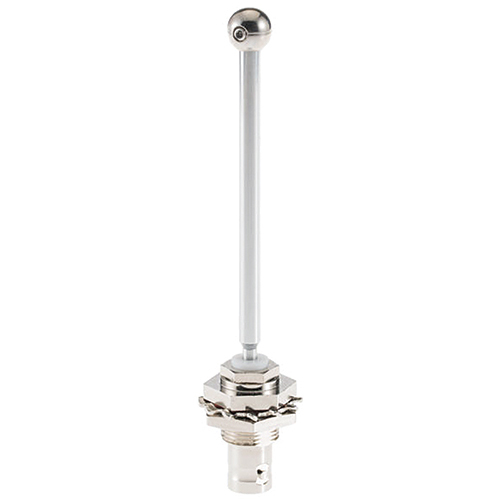

AV-21 UHF Broadband Radio Telephone Rod Antenna | 746–960 MHz

ANTENNA/Rod type, 746-960 MHz, 50 Ohms nominal, vertical pol

RAMI

Call For Pricing

Available to order

EDMO # AV-21

MFR Part # AV-21

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-21 is a rod style broadband radio telephone antenna which utilizes a BNC connector that allows for a smaller mounting hole. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet. It has a drag force of 0.41 lbs at 250 mph.

Features

746–960 MHz frequency range
Vertical polarization
Omni-directional pattern
BNC female connector
Backed by the RAMI Limited Lifetime Warranty

Specifications

Weight:

1.2 oz, max
Application:

Radio telephone
Frequency:

746–960 MHz
Impedance:

50 Ω, nominal
VSWR:

1.5:1, max at 764-870 MHz 2.7:1, max at 870-960 MHz
Polarization:

Vertical
Pattern:

Omni-directional
Connector:

BNC female
RF Power Capacity:

1 KW peak pulse at 1% duty cycle

Product Codes

Mfr Part No

AV-21
