AV-289 Broadband Blade Antenna | 4G, GSM, PCS, WIFI & UMTS
R A MILLER INDUSTRIES
EDMO#: AV-289
MFR#: AV-289
Description

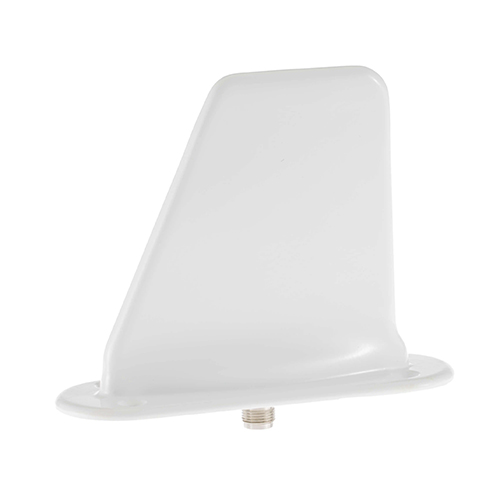

The AV-289 is a broadband blade type antenna for applications such as Transponder, Cellular, 4G, GSM, PCS, WIFI, and UMTS. It is also FAA qualified as a transponder antenna. The antenna housing is constructed of a Polyacrylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541.
The AV-289 antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet. This antenna has Dual-Band, L-Band, and Wideband capabilities.
This AV-289 antenna (EDMO# AV-289) has the standard TNC connector.
Features
- Frequency range: 700-799 MHz, 800-849 MHz, 850-1029 MHz, 1030-1090 MHz, and 1091-2700 MHz (Non TSO Function)
- 50Ω impedance
- Vertical polarization
- TNC female connector
- Gloss white finish
Specifications
Weight:
0.60 lb
Application:
Transponder, Cellular, 4G, GSM, PCS, WIFI, and UMTS
Frequency:
700-799 MHz (Non TSO Function)
800-849 MHz (Non TSO Function)
850-1029 MHz (Non TSO Function)
1030-1090 MHz (Non TSO Function)
1091-2700 MHz (Non TSO Function)
Impedance:
50Ω, nominal
VSWR:
2.8 Max at 700 to 799 MHz, 2.8 Max
2.2 Max at 800 to 849 MHz
2.0 Max at 850 to 1029 MHz
1.5 Max 1030 to 1090 MHz
2.0 Max 1091 to 2700 MHz
Polarization:
Vertical
Connector:
TNC female (optional: SMA, BNC, and N types)
Gain:
4 dBi, nominal (on 4 ft round ground plane)
3.5 dB1, nominal (on 2 ft round ground plane)
Color:
Gloss White
Product Codes
Mfr Part No :
AV-289
ECCN :
7A994
PROAPP :
PT2530CE
SCHEDULE B CODE :
8529.10.4000
TSO :
C74d
