AV-289 Broadband Blade Antenna | SMA Female, 700–799 MHz, 800–849 MHz, 850–1029 MHz, 1030–1090 MHz, 1091–2700 MHz

RAMI

Call For Pricing

Available to order

EDMO # AV-289SMA

MFR Part # AV-289 (-SMA)

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

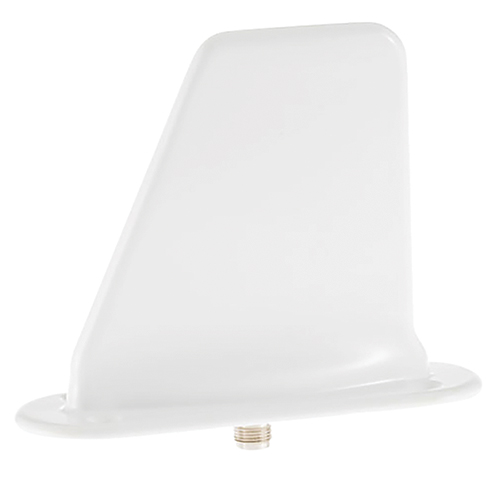

The AV-289 is a broadband blade type antenna for applications such as Transponder, Cellular, 4G, GSM, PCS, WIFI, and UMTS. It is also FAA qualified as a transponder antenna. The antenna housing is constructed of a Polyacrylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating per MIL-C-5541.

The AV-289 antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet. This antenna has Dual-Band, L-Band, and Wideband capabilities.

This AV-289 antenna (EDMO# AV-289SMA) has the optional SMA connector.

Features

Frequency range: 700–799 MHz, 800–849 MHz, 850–1029 MHz, 1030–1090 MHz, and 1091–2700 MHz (Non TSO Function)
50 Ω impedance
Vertical polarization
SMA female connector
Gloss white finish
Backed by the RAMI Limited Lifetime Warranty

Specifications

Weight:

0.60 lb
Application:

Transponder, Cellular, 4G, GSM, PCS, WIFI, and UMTS
Frequency (Non TSO Function):

700–799 MHz 800–849 MHz 850–1029 MHz 1030–1090 MHz 1091–2700 MHz
Impedance:

50Ω, nominal
VSWR:

2.8 Max at 700 to 799 MHz, 2.8 Max 2.2 Max at 800 to 849 MHz 2.0 Max at 850 to 1029 MHz 1.5 Max 1030 to 1090 MHz 2.0 Max 1091 to 2700 MHz
Polarization

: Vertical
Connector:

SMA Female
Gain:

4 dBi, nominal (on 4 ft round ground plane) 3.5 dB1, nominal (on 2 ft round ground plane)
Color:

Gloss White
