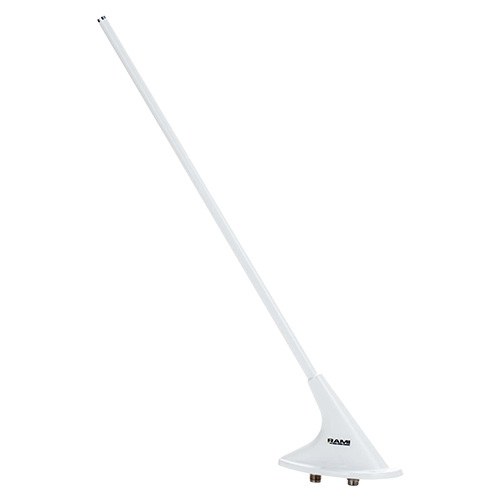

AV-402 Rod Whip ELT Antenna | 121.5, 243 & 406 MHz, 50 Ohms, BNC & TNC Connectors

AV-402 Rod Whip ELT Antenna | 121.5, 243 & 406 MHz, 50 Ohms, BNC & TNC Connectors

RAMI

Call For Pricing
Available to order
EDMO # AV-402
MFR Part # AV-402
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This ELT antenna (EDMO# AV-402) is intended for use with an ELT (Emergency Locator Transmitter) for general aviation.  It is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots).

Features

  • 121.5, 243 & 406 MHz frequencies
  • Vertical polarization
  • Omnidirectional pattern
  • 50 Ω impedance
  • BNC & TNC female connectors
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Weight:
    0.39 lbs
  • Frequency:
    121.5, 243 & 406 MHz
  • Impedance:
    50 Ω
  • VSWR:
    2.0:1 @ 121.5 MHz 2.5:1 @ 243 MHz 1.5:1 @ 406 MHz
  • Polarization:
    Vertical
  • Pattern:
    Omni-Directional
  • Connector:
    BNC Female, T NC Female
  • RF Power Handling:
    10 Watts CW

Related Products

Product Codes

  • Mfr Part No
    AV-402
