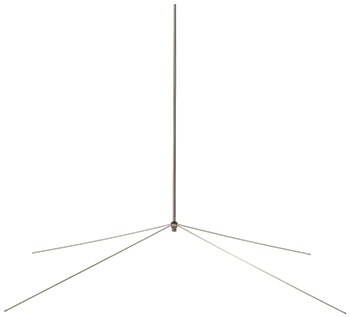

AV-5 VHF Base Station Antenna | 118–137 MHz

ANTENNA/VHF communications, base station, 118-137 MHz.

RAMI

Call For Pricing
In stock
EDMO # AV-5
MFR Part # AV-5
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-5 is an economical Ground Plane base station antenna. It is ideally suited for use with Unicom transceivers and is field tunable to optimize VSWR at desired frequency. Durably constructed of high quality materials for a long operational life, the antenna is designed to withstand windspeeds up to 100 mph.

Features

  • Designed for base station communication
  • 118–137 MHz frequencies
  • Vertical polarization
  • Omni-directional pattern
  • 50 Ω impedance
  • SO-239 connector
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Max Height:
    34 in
  • Frequency:
    118 – 137 MHz Field tunable from 110 – 512 MHz
  • Impedance:
    50 Ohms Nominal
  • VSWR:
    1.5:1 Maximum at Resonance
  • Polarization:
    Vertical
  • Pattern:
    Omni-directional
  • Connector:
    SO-239
  • RF Power Capacity:
    100 Watts

Related Products

Product Codes

  • Mfr Part No
    AV-5
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8529.10.4000
