AV-520 VOR/LOC/GS Antenna | 108–118 MHz & 329–335 MHz

AV-520 VOR/LOC/GS Antenna | 108–118 MHz & 329–335 MHz

RAMI

Call For Pricing
In stock
EDMO # AV-520
MFR Part # AV-520
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

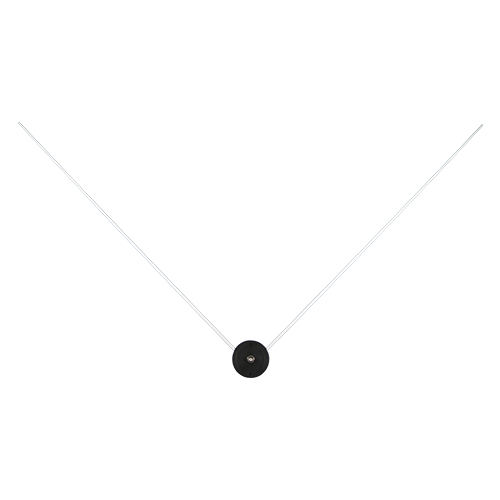

The AV-520 is a “V” style VOR/LOC/GS (receive only) antenna utilizing detachable painted stainless steel elements and internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 159C.

Features

  • 108–118 MHz (VOR/LOC) & 328–336 MHz (GS) frequency ranges
  • Horizontal polarization
  • Omni-directional pattern
  • BNC female connector
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Max. Weight:
    0.50 lb
  • Application
    : VOR/LOC/GS Receive Only
  • Frequency
    : 108 – 118 MHz 328 – 336 MHz
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 3.0:1 Max. 108-118 MHz 2.0:1 Max. 328-336 MHz
  • Polarization
    : Horizontal
  • Pattern
    : Omni-directional
  • Connector
    : BNC Female
  • FAA Approvals:
    TSO-C34e, TSO-C36e, TSO-C40c

Related Products

Product Codes

  • Mfr Part No
    AV-520
  • ECCN
    7A994
  • PROAPP
    PT2530CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C34e, C36e, C40c
