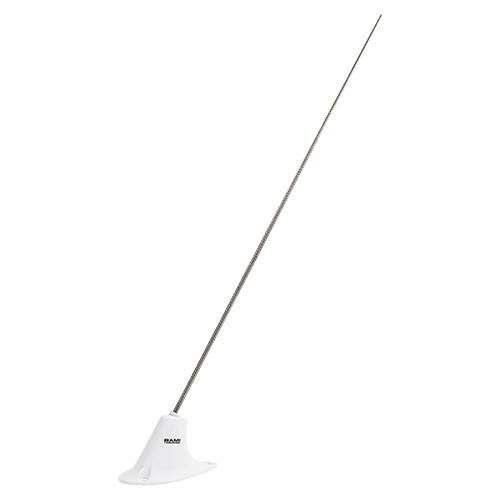

AV-530 VHF Communications Whip Antenna | 118–137 MHz

Product Description

The AV-530 is designed for broadband communications. This antenna has a die-cast aluminum base and a tapered stainless steel whip for less drag at higher airspeeds. It is supplied with a weather-sealing gasket and mounting hardware. The AV-530 antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 1.65 lb @ 250 mph. This antenna is a direct replacement for the CI 292-1.

Specifications

• Weight:
  8 oz
• Height:
  22.75 in Max
• Frequency:
  118 MHz to 137 MHz
• Impedance:
  50Ω Nominal
• VSWR
  : 2.5:1 Maximum
• Polarization
  : Vertical
• Pattern
  : Omni-Directional
• Connector
  : BNC (Female)
• RF Power Capacity:
  25 W
• FAA TSO:
  C37d, C38d

Product Codes

• Mfr Part No
  AV-530
• ECCN
  7A994
• PROAPP
  PT2530CE
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• RAMI Limited Lifetime Warranty
