AV-534 VHF Communications Antenna | 118–137 MHz

AV-534 VHF Communications Antenna | 118–137 MHz

RAMI

Call For Pricing
Available to order
EDMO # AV-534
MFR Part # AV-534
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

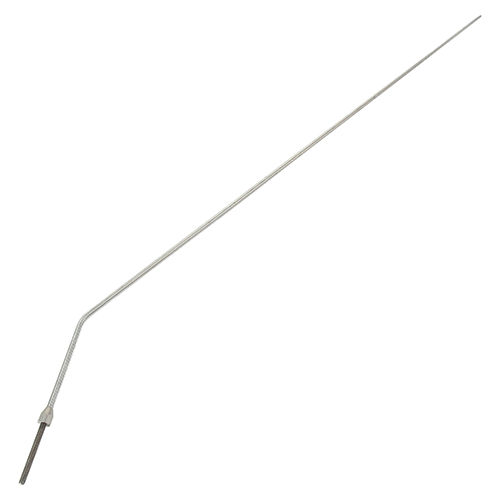

The AV-534 is a heavy-duty stainless steel quarterwave VHF communications antenna. It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware. The AV-534 antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.56 lb @ 250 mph.

Features

  • 118–137 MHz frequency range
  • Vertical polarization
  • Omni-directional pattern
  • BNC male connector
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Max Height:
    18.75 in
  • Application
    : Airborne Communications
  • Frequency
    : 118–137 MHz
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 3.0:1 Maximum
  • Polarization
    : Vertical
  • Pattern
    : Omni-Directional
  • Connector
    : BNC Male
  • RF Power Capacity:
    50 Watts
  • FAA Approvals:
    TSO-C37d, TSO-C38d

Related Products

Product Codes

  • Mfr Part No
    AV-534
  • ECCN
    9A991
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C37d,C38d
