Product Description

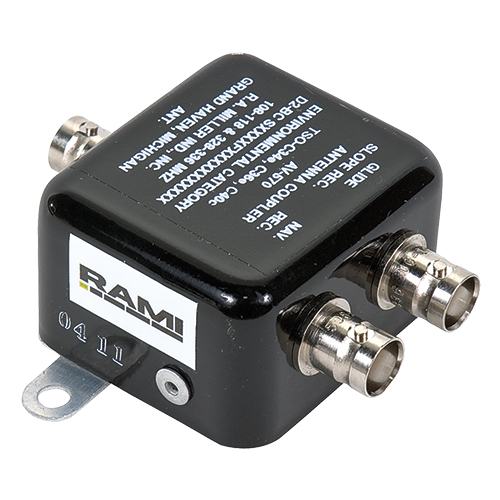

The AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver. The diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft. This product is a direct replacement for the CI 507.

Features

  • Splits signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
  • 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
  • 50 Ω impedance
  • 3 BNC female connectors
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Max. Weight:
    3.5 oz
  • Frequency
    : 108–118 MHz 328–336 MHz
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 1.4:1 Maximum
  • Insertion
    Loss : 1 dB Maximum
  • Isolation
    : 38 dB Minimum
  • Connectors
    : (3) BNC Female
  • FAA Approvals:
    TSO-C34e, TSO-C36e, TSO-C40c
