AV-571 VOR/LOC/GS Diplexer/Splitter | Receive Only, 108–118 MHz & 328–336 MHz


RAMI

Call For Pricing
In stock
EDMO # AV-571
MFR Part # AV-571
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

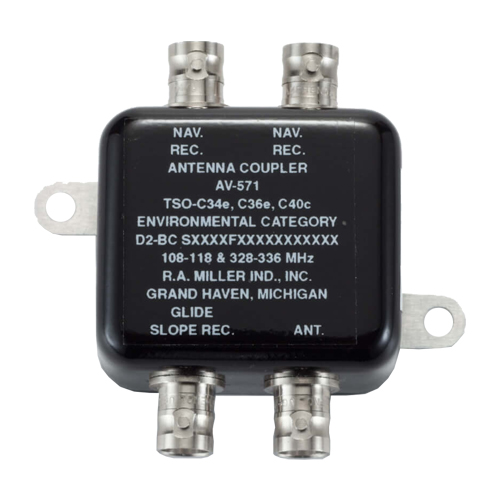

The AV-571 diplexer/splitter splits the signal from a VOR-type antenna to feed two NAV and one Glide Slope receivers. The diplexer/splitter’s construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft. This product is a direct replacement for the CI 505.

Features

  • Splits signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
  • 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
  • 50 Ω impedance
  • 4 BNC female connectors
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Max. Weight:
    3.5 oz
  • Application
    : VOR/LOC/GS (Receive Only)
  • Frequency
    : 108–118 MHz 328–336 MHz
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 1.4:1 Maximum
  • Insertion Loss:
    1 dB Maximum (GS) 3.5 dB Maximum (VOR/LOC)
  • Isolation:
    22 dB Minimum / 35 dB Avg
  • Connectors:
    (4) BNC Female
  • FAA Approvals:
    TSO-C34e, TSO-C36e, TSO-C40c

Related Products

Product Codes

  • Mfr Part No
    AV-571
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C34e,C36e,C40c
