AV-590 Electronic COM Switch | 12–15 VDC, 118–137 MHz

Product Description

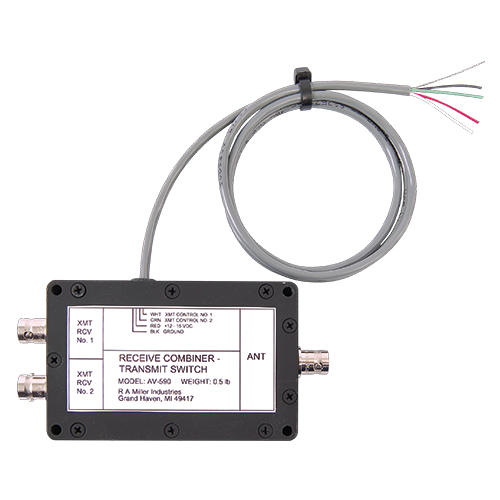

The AV-590 electronic COM switch allows two communications radios to share the same communications antenna. In receive mode, the AV-590 acts as a splitter providing signal to both radios; in transmit mode, a control signal is sent from the audio panel to the AV-590 to switch the AV-590 to the selected radio therefore isolating the remaining radio from the AV-590 electric switch. When the transmission is complete, the control signal is removed and the AV-590 reverts back into receive mode.

Specifications

• Weight:
  0.5 lb
• Dimensions:
  3.69 x 2.36 x 0.88 in
• Application:
  COM switch
• Ports:
  Antenna XMT/RCV No. 1 XMT/RCV No. 2
• Frequency:
  118 MHz – 137 MHz
• VSWR:
  1.2:1 max.
• Receive Insertion Loss:
  <0.6 dB above 3.0 dB
• Transmit Insertion Loss:
  <0.3 dB
• Isolation:
  >30 dB
• Voltage:
  AV-590: 12-15 VDC @ 60 mA max. AV-590(-28): 20-30 VDC @ 60 mA max.
• Connectors:
  BNC female
• Cable:
  36 in, 4-conductor
• RF Power Handling:
  25 watts TX
• Color:
  Black

Product Codes

• Mfr Part No
  AV-590
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
