AV-61 L-Band & Transponder Antenna | 960–1220 MHz

Product Description

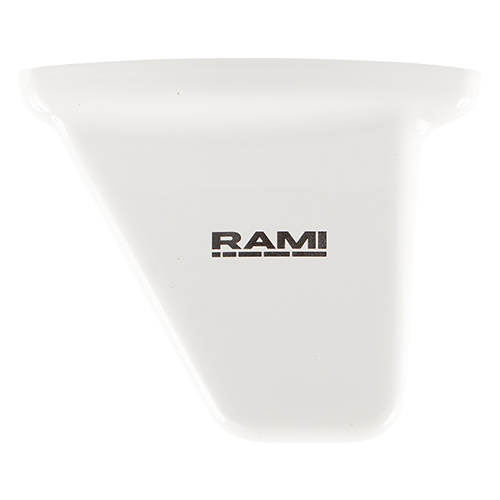

The AV-61 Aviation L-Band and Transponder Antenna is a broadband blade type antenna capable of operating on DME, transponder, ATCRBS/Modes, TCAS & TAS frequencies. This antenna is designed to operation up to 350 mph and 50,000 feet and over the frequency range from 960 MHz to 1,220 MHz. The anacrylonitrile-styrene-acrylic (ASA) shell provides durability while its white color allows for maximum performance without losses due to color pigments or unseen dirt.

Supplied with the AV-61 antenna is a cellular neoprene mounting pad and hardware.

Specifications

• Weight:
  0.2 lb, maximum
• Application:
  DME, Transponder, ATCRBS/MODES, TCAS & TAS
• Frequency:
  960 MHz – 1220 MHz
• Impedance:
  50Ω, nominal
• VSWR:
  1.5:1, maximum
• Polarization:
  Vertical
• Pattern:
  Omni-directional
• Connector:
  BNC (female)
• RF Power Capacity:
  2.5kW, peak
• Gain:
  Unity
• Lighting Protection:
  DC grounded
• Drag Force:
  0.09 lb
• Color:
  Gloss white
• Certification:
  TSO-C66c, TSO-C74c, TSO-C112e, TSO-C118a, TSO-C147a

Product Codes

• Mfr Part No
  AV-61
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66c, C74c, C112e, C118a, C147a
