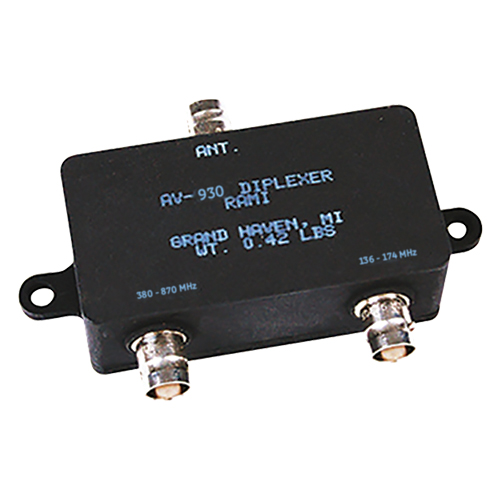

AV-930 Antenna Diplexer | 136–174 MHz & 380–870 MHz

Product Description

The AV-930 diplexer can be used with airborne multi-band FM transceivers. The device is designed to provide two separate frequency band ports (typically going to a multi-band transceiver) from a single port multi-band antenna.

Specifications

• Weight:
  0.42 lbs
• Frequency:
  Port 1: Antenna Port 2: Radio 136–174 MHz Port 3: Radio 380–870 MHz
• Impedance:
  50 Ω
• VSWR:
  1.3:1
• Insertion Loss:
  Less than .5 dB
• Isolation:
  Greater than 35 dB
• Connectors:
  TNC Female
• RF Power Capacity:
  10 Watts VHF, 5 Watts UHF
• Color:
  Black

Product Codes

• Mfr Part No
  AV-930

Documentation

• RAMI Limited Lifetime Warranty
