AVT-4 VHF Comm Antenna | 118-137 MHz

ANTENNA/VHF communications, blade type, 118-137 MHz, BNC female connector.

R A MILLER INDUSTRIES

EDMO#: AVT-4

MFR#: AVT-4

Description

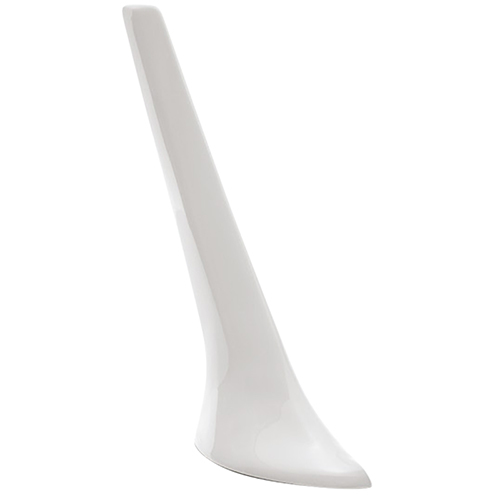

The AVT-4 is a broadband VHF communications antenna. It incorporates a low drag blade housing design for high strength and a radiating element encapsulated in rigid polyurethane foam. The housing is finished with a Skydrol resistant white polyurethane paint and comes with mounting hardware and neoprene mounting pad. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.85 lb. @ 250 mph.

Features

  • Finished with a Skydrol resistant white polyurethane paint
  • Comes with mounting hardware and neoprene mounting pad
  • 118-137 MHz frequency range
  • Vertical polarization

Specifications

Max Height:
13 in

Application:
Airborne Communications

Frequency:
118 – 137 MHz

Impedance:
50 Ohms Nominal

VSWR:
3.0:1 Maximum

Polarization:
Vertical

Pattern:
Omnidirectional

Connector:
BNC Female

RF Power Capacity:
30 Watts

FAA Approval:
TSO-C37d, TSO-C38d

Product Codes

Mfr Part No :

AVT-4

ECCN :

7A994

SCHEDULE B CODE :

8529.10.4000

TSO :

c37d & c38d
