B-40 Coax Solder Terminal Sleeve | 30 AWG

Product Description

B-40 coaxial solder terminal sleeves provide easy termination of the primary conductor and the braided shield of coaxial cables. These solder terminals offer insulation and strain relief while providing an economical method for attaching the connector of coax cable to connector terminals, printed wire assemblies, and solderless wrap terminals.

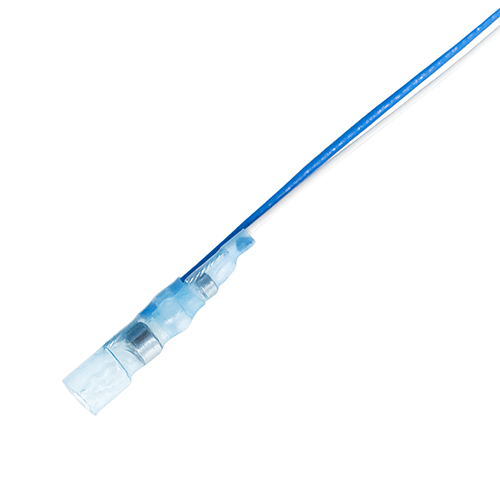

This B-40 solder sleeve (EDMO# B-040-30-N) fits 30 AWG gauge coax cables that have a jacket diameter of 0.175 inches. *see datasheet

Specifications

• Wire Gauge:
  30 AWG
• Overall Length:
  1.180 in (30 mm)
• Jacket Diameter:
  0.175 in (4.4 mm), expanded 0.065 in (0.065 mm), minimum
• Braid Diameter:
  0.110 in (2.8 mm), expanded 0.060 in (1.5 mm), minimum
• Temperature Range:
  -55°C to 150°C
• Insulation Sleeve:
  Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
• Insulation Color:
  Transparent blue
• Solder Preforms (with flux):
  Solder: TYPE Sn63 per ANSI J-STD-006 Flux: TYPE ROL1 per ANSI J-STD-004
• Meltable Rings:
  Thermally stabilized thermoplastic
• Conductor Lead:
  MIL-W-22759/32-GA-9, AWG “GA” ETFE insulated, stranded tin plated copper
• Conductor Lead Color:
  White
• Ground Lead:
  MIL-W-22759/32-GA-6, AWG “GA” ETFE insulated, stranded tin plated copper
• Ground Lead Color:
  Blue

Product Codes

• Mfr Part No
  B-040-30-N
