Standard Vertical Cable Seal | Fits Cables up to 0.53-inch, Connectors up to 0.81-inch, White Plastic
SEAVIEW
EDMO#: CG20PW
MFR#: CG20PW
Description
The Seaview Cable Seals (also known as CableClams, Cable Glands or Deck Seals) provide waterproof cable routing. These are made of very strong plastic or marine grade 316 stainless steel and come in a variety of colors and finishes. Seaview cable seals fit a wide range of cables and connectors. Seaview Cable Seal options for 0.67-inch to 1.38-inch (17mm to 34mm) connectors, making it ideal for almost every installation. All Seaview Cable Seals (including the round Cable Seals) will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.

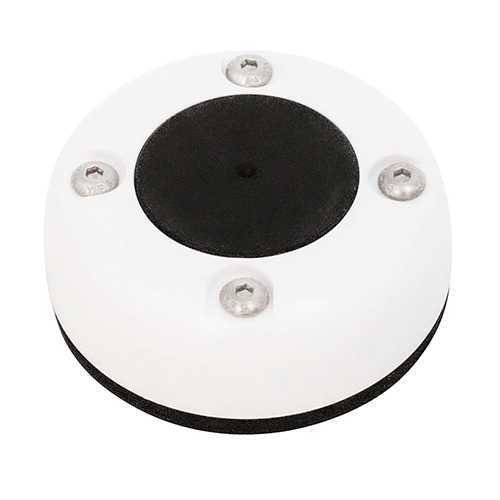

This vertical cable seal (EDMO# CG20PW) fits cables up to 0.53-inch (13.5mm), connectors up to 0.81-inch (20mm), and has a white plastic housing.
Features
- Split seal design eliminates the need to remove cable connectors during installation
- Tapered rubber seal and base gasket forms a watertight installation with a waterproof rating of IPX6 and IPX7
- Low profile design for a strong, impact-resistant and clean installation with no sharp edges
- Each cable seal comes with 4 brass drill tubes (6, 8, 10 & 12mm)
Specifications
Dimensions:
2.000 x 0.813 in (51 x 20.7mm)
Maximum Cable Diameter:
0.53 in (13.5mm)
Maximum Connector Size:
0.81 in (20mm)
Product Codes
Mfr Part No :
CG20PW
SCHEDULE B CODE :
9999.99.9999
