CI 105-9 DME Transponder Antenna

Product Description

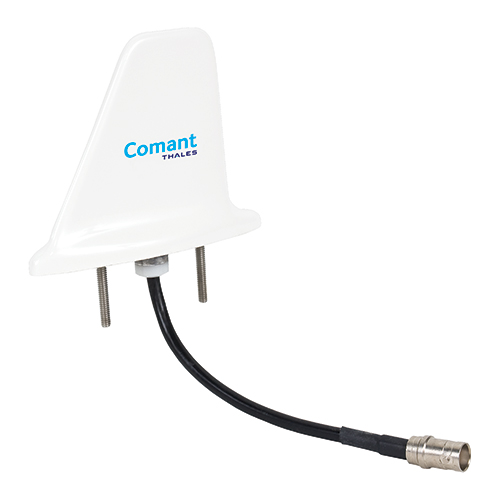

The CI 105-9 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell. Used in single and twin engine piston aircraft.

Specifications

• Weight:
  0.3 lb
• Dimensions (height):
  3.23 in
• Finish:
  Polyurethane enamel
• Connector:
  Cable terminal–BNC (female)
• Frequency:
  960–1220 MHz 1025–1150 MHz
• VSWR:
  1.5:1 @ 960–1220 MHz, maximum 1.3:1 @ 1025–1150 MHz, maximum
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to a 1/4 wave stub
• Impedance:
  50Ω
• Resistance DC:
  Open circuit
• Power RF:
  2.5 KW Peak
• Temperature:
  -55° to 85° C
• Altitude:
  70,000 ft
• Airspeed:
  400 Knots TAS at 25,000 ft
• Gasket:
  B10505

Product Codes

• Mfr Part No
  CI 105-9
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66b,C74c
