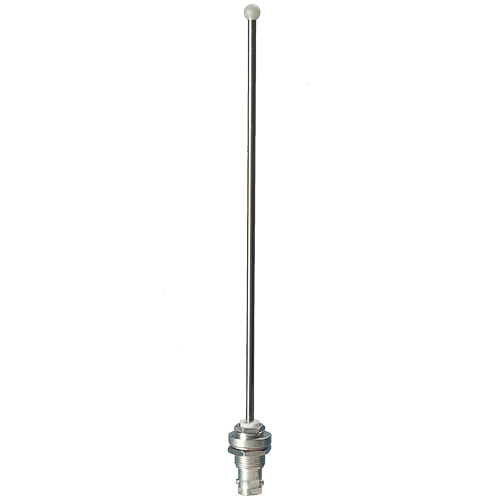

CI 106 UHF Radiotelephone Antenna

Product Description

The CI 106 antenna (EDMO# CI-106) is a single-hole-mount style stub UHF Radiotelephone Communication antenna with a BNC female connector. It is designed to support the 450–470 MHz range and is suitable for bottom mounting with light fixed-wing single-engine and multi-engine aircraft. The antenna radiator is mechanically captivated and sealed against leakage. All exposed metal surfaces are nickel-plated for corrosion resistance and long service.

Specifications

• Weight:
  0.18 lbs
• Height:
  7 in
• Frequency:
  450–470 MHz
• VSWR:
  1.7:1
• Polarization:
  Vertical
• Radiation Pattern:
  Typical of 1/4 Wave
• Impedance:
  50 Ω
• RF Power:
  50 W
• Speed Rating:
  Up to 250 Knots TAS
• Finish:
  Nickel plated brass
• Material:
  Tin-Nickel Alloy
• Connector:
  BNC Female

Product Codes

• Mfr Part No
  CI 106
• ECCN
  7A994
• NSN
  5985-01-376-0307
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 106 Data Sheet
• CI 106 Product Drawing
