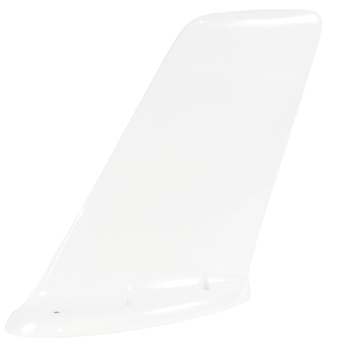

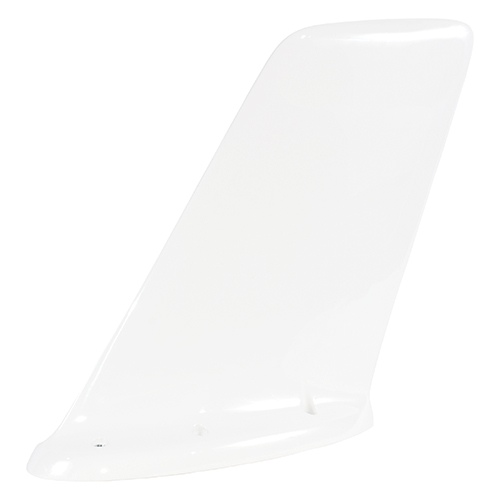

VHF BLADE ANTENNA/BNC Female Connector, 118-137 MHz, 50 Ohms, 25 Watts, Airspeed 600 Knots, 6 Hole Mount & a White Finish.
COMANT INDUSTRIES
EDMO#: CI-108
MFR#: CI 108
Description
The CI-108 series is designed for high performance aircraft applications suitable for either top or bottom mounting. Solid polyurethane construction for strength, reliability and durability. White polyurethane finish is Skydrol and rain erosion resistant. The 108 series has been re-tested and upgraded to the RTCA DO-160D environmental requirements.
Features
- 118-137 MHz frequencies
- Designed for high-performance aircraft applications
- Suitable for either top or bottom mounting
- Solid polyurethane construction for strength, reliability and durability
- White polyurethane finish is Skydrol and rain erosion resistant
- VHF communication
- BNC connector
Specifications
Weight:
2.5 lb
Height:
12 in
Frequency:
118 MHz to 137 MHz
VSWR:
2.5:1 maximum
Polarization:
Vertical
Radiation pattern:
Omnidirectional
Impedance RF:
50 Ω
Power RF:
25 watts
Material:
High density polyurethane
Finish:
Polyurethane enamel
Gasket:
C10810 - cork neoprene
Connector:
BNC
Temperature:
-55 to +85 C
Altitude:
50,000
Certification:
FAA TSO - C37d, C38d
RTCA MOPS - DO-186
RTCA Environmental DO-160D
Product Codes
Mfr Part No :
CI 108
ECCN :
7A994
PROAPP :
PT2316NM
SCHEDULE B CODE :
8529.10.4000
TSO :
C37d,C38d
