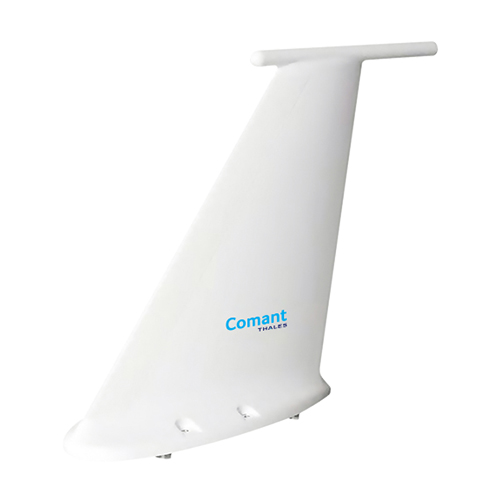

CI 1085-20-L Multi-Function VHF/L-Band Antenna | Dual Port, Edge Protection

COMANT INDUSTRIES

Call For Pricing

Available to order

EDMO # CI-108520L

MFR Part # CI-1085-20-L

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This Dual Port, Multi-Function antenna (EDMO# CI 1085-20-L) supports VHF, DME, UAT/ADS-B, and ATCRBS transponder/Mode S frequencies in a single antenna. This antenna has five different TSO certifications and uses the the same popular footprint of many other ATCRBS Mode S Transponder/DME/UAT ADS-B and VHF communications antennas. This CI 1085 Multi-Function antenna is suited for operation on fixed-wing turbine powered aircrafts and light jets.

Features

Frequency Coverage:
VHF Communications: 116 MHz – 156 MHz
DME: 960 MHz – 1215 MHz
UAT/ADS-B: 978 MHz
ATCRBS Transponder/Mode S: 1030 MHz – 1090 MHz

Also Purchased

Specifications

Weight:

2.25 lb, maximum
Installation Instr.:

A108529 Supplied with Antenna
Connector:

J1 BNC (F) 116 MHz – 156 MHz J2 TNC (F) 960-1220 / 1030 MHz – 1090 MHz
Finish:

Polyurethane white paint
Certifications:

RTCA DO-160G FAA TSO C74d ATCRBS/Transponder, C66c DME, C112e ARCRBS/Mode S Transponder, C154c UAT/ADS-B, C169a VHF Comm
Frequency / VSWR (max):

116 MHz – 156 MHz/ 3.0:1 960 MHz – 1215 MHz / 2.0:1 1030 MHz – 1090 MHz / 1.5:1 978 MHz / 1.7:1
Polarization:

Vertical
Radiation Pattern:

Omni Directional
Impedance:

50Ω
Power Rating:

VHF: 40 watts L Band: 1 KW peak
