CI 110-40-30 DME Transponder Blade Antenna | 960–1220 MHz, Open Circuit Resistance

Product Description

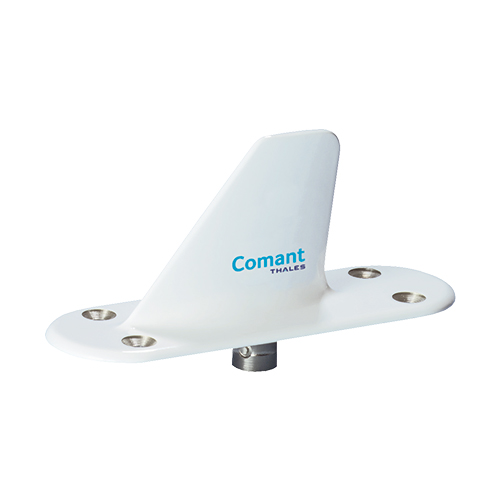

The CI 110-40-30 DME transponder blade antenna (EDMO# CI-1104030) is an all metal, low profile antenna designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard transponders and Mode S transponders.

Specifications

• Weight:
  0.25 lb, maximum
• Height:
  2.20 in, maximum
• Frequency:
  960–1220 MHz 1030–1090 MHz
• VSWR:
  960–1220 MHz: 1.7:1 1000–1100 MHz: 1.4:1
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent of 1/4 Stub
• Impedance RF:
  50Ω
• Resistance DC:
  Open Circuit
• Power RF:
  3 KW Peak Average 100 watts
• Material:
  Die Cast A380 aluminum alloy
• Finish:
  White polyurethane enamel (Standard)
• Connector:
  C
• Gasket:
  70445 "O" Ring
• Temperature:
  -55°C to 85°C
• Altitude:
  70,000 ft
• Air Speed:
  600 Knots TAS at 25,000 ft
• RTCA Environmental:
  DO-160D
• Environmental Category:
  [F2X]ACB(S(L)U(F,F1)T(C,C1,R)] XRFDXSXXXXX[XX]X[XXXX]XAX
• FAA TSO:
  C66c, C74c, C112
• RTCA MOPS:
  DO-144, DO-189, DO-181

Product Codes

• Mfr Part No
  CI 110-40-30
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C66c,C74c,C112
