CI-1114 VOR Threeway Signal Coupler | 108–118 MHz, 50 Ω, BNC Female Connector

Product Description

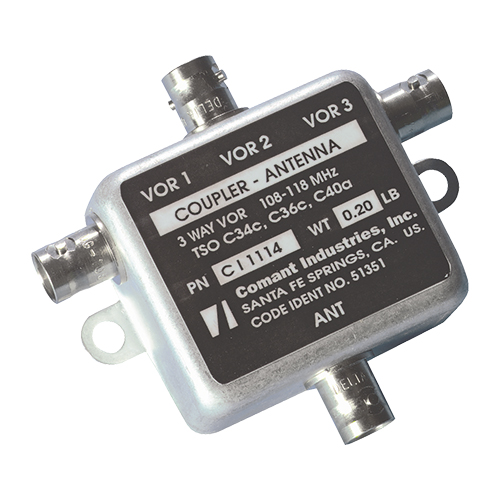

The CI 1114 VOR threeway signal coupler (EDMO# CI-1114) is a two-through-hole-mount style coupler with BNC ports. Separates a single VOR/LOC antenna signal into three separate VOR/LOC signals. Designed for VOR/LOC only coupling applications. Suitable for internal aircraft mounting.

Specifications

• Weight:
  0.25 lb
• Height:
  0.80 in
• Frequency:
  108–118 MHz
• VSWR:
  1.5:1 Max
• Isolation:
  20 dB Max
• Impedance:
  50 Ω
• Construction:
  Stamped aluminum
• Finish:
  Aluminum
• Connector:
  BNC female
• Mounting Method:
  Internal mounting
• Compliance:
  FAA TSO C36e, C40e

Product Codes

• Mfr Part No
  CI 1114
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C36c,C40a

Documentation

• CI 1114 Data Sheet
• CI 1114 Product Drawing
