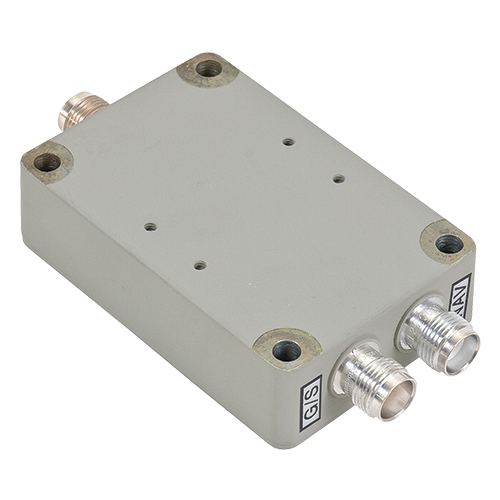

CI 1120 VOR/LOC/GS Signal Diplexer | 108-120 MHz and 325-340 MHz, 50 Ω, TNC Female Connector

Product Description

The CI 1120 VOR/LOC/GS signal diplexer (EDMO# CI-1120) is a two-through-hole-mount style diplexer with TNC ports that converts a single VOR/LOC/GS antenna signal into one VOR/LOC and one GS signal output. It is designed for avionics units that require a split NAV signal and is suitable for internal aircraft mounting.

Specifications

• Weight:
  0.50 lb
• Height:
  0.85 in
• Frequency:
  108–120 MHz & 325–340 MHz
• VSWR:
  1.5:1 Max
• Isolation:
  40 dB Min between frequencies
• Insertion Loss:
  0.5 dB Max, 0.3 dB Typical
• Impedance:
  50 Ω
• Material:
  Die Cast Aluminum
• Finish:
  Flat Grey Epoxy Paint
• Connectors:
  TNC Female

Product Codes

• Mfr Part No
  CI 1120
• MIL SPEC
  MIL-E-5400 / MIL-B-5087
• ECCN
  7A994
• MIL SPEC
  MIL-E-5400 / MIL-B-5087
• NSN
  5985-01-050-2798
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 1120 Data Sheet
• CI 1120 Product Drawing
