CI 1125 Dual VOR & Glide Slope Diplexer | 108-118 MHz & 329-335 MHz, 50 Ω, BNC Connector

Product Description

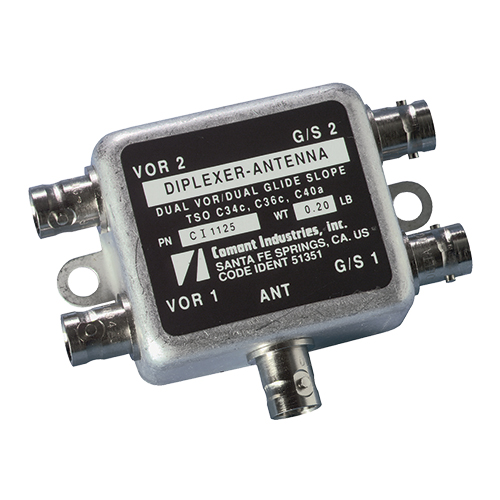

The CI 1125 Dual VOR & Glide Slope Diplexer (EDMO# CI-1125) is a two-through-hole-mount style diplexer with BNC ports that splits a single VOR/LOC and GS antenna signal into two VOR/LOC and two GS signal output. It is designed for avionics units that require separate NAV signal inputs and is suitable for internal aircraft mounting.

Specifications

• Weight:
  0.20 lb
• Height:
  0.75 in
• Frequency:
  108–118 MHz & 329–335 MHz
• VSWR:
  1.5:1 maximum
• Isolation:
  20 dB between VOR/GS 18 dB between VOR Ports 18 dB between GS Ports
• Insertion Loss:
  3.6 dB Maximum
• Impedance:
  50 Ohms
• Material:
  Aluminum
• Finish:
  Aluminum
• Connector:
  BNC
• Mounting Location:
  Internal mounting
• Certifications:
  FAA TSO C34c, C36c, C40a

Product Codes

• Mfr Part No
  CI 1125
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a

Documentation

• CI 1125 Data Sheet
• CI 1125 Product Drawing
