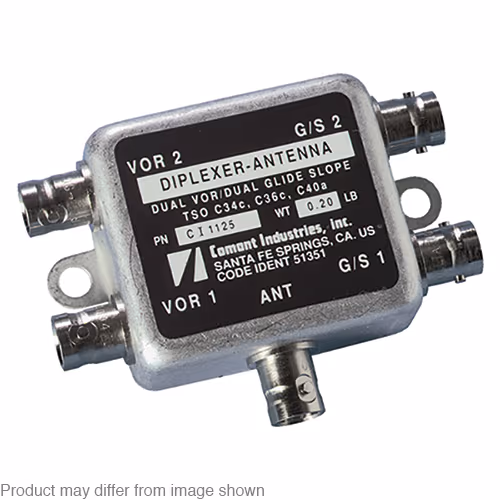

Diplexer | 2 VOR/GS, TNC connectors, 108-118 MHz and 329-335 MHz

Diplexer with 2 VOR/GS, TNC connectors, and 108-118 MHz and 329-335 MHz

COMANT INDUSTRIES

EDMO#: CI-1125TNC

MFR#: CI 1125-TNC

Description

The CI-1125 dual VOR/GS diplexer allows operation between two VOR receivers and two glide slope receivers from the same antenna.

This CI-1125 diplexer (EDMO# CI-1125TNC) has a TNC connector.

Features

No product features currently available.

Specifications

Weight:
0.20 lb

Dimensions:
0.75 in

Material:
Aluminum

Finish:
Aluminum

Connector:
TNC

Frequency:
108 - 118 MHz, 329 - 335 MHz

VSWR:
1.5:1, maximum

Isolation:
20 db between VOR/GS
18 db between VOR ports
18 db between GS parts

Insertion Loss:
3.6 dB, maximum

Impedance:
50Ω

Internal Mounting

FAA TSO C34c, C36c, C40a

Product Codes

Mfr Part No :

CI 1125-TNC

ECCN :

7A994

SCHEDULE B CODE :

8529.10.4000
