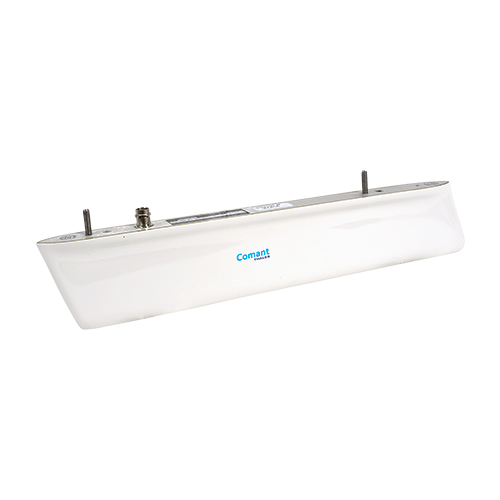

CI-118-9 Marker Beacon Antenna | Honeywell Bendix-King Replacement, BNC Connector, 75 MHz, 50 Ohms, 400 Knots

Product Description

The CI 118-9 antenna (EDMO# CI-118-9) is a two-internal-hole-mount style marker beacon antenna with a BNC port designed as a replacement for the Honeywell Bendix-King KA26. It features a 75 MHz frequency that supports high sensitivity marker beacon receivers and a thin profile suitable for bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets. It is DC grounded to minimize accumulation of precipitation static and Skydrol and rain erosion resistant.

Specifications

• Weight:
  0.65 lb
• Height:
  2.69 in
• Frequency:
  75 MHz
• VSWR:
  1.5:1
• Polarization:
  Parallel to mounting plane
• Radiation Pattern:
  Primarily Downward
• Impedance RF:
  50 Ω
• Resistance DC:
  DC Grounded
• Power RF:
  Receive Only
• Construction:
  Molded Rigid Foam
• Finish:
  Glossy White
• Connector:
  BNC (female)
• Airspeed:
  400 kt
• Temperature Rating:
  -55ºC to 85ºC
• Altitude:
  45,000 ft
• FAA TSO:
  C35d, Class A
• RTCA Environmental:
  DO-138

Product Codes

• Mfr Part No
  CI 118-9
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C35d

Documentation

• CI 118-9 Data Sheet
• CI 118-9 Product Drawing
