CI 120-3 VOR/LOC/GS Power Combiner | 108-118 MHz & 329-335 MHz, 50 Ω, BNC Female Connector

Product Description

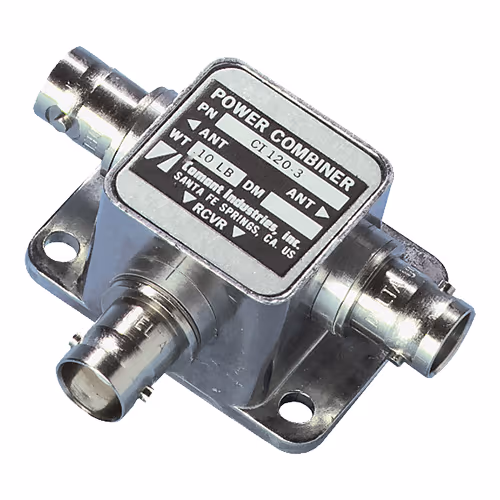

The CI 120-3 power combiner (EDMO# CI-120-3) is a four-through-hole-mount style power combiner with BNC ports that combines two VOR/LOC/GS antenna signals into a single coaxial cable run for one VHF Nav input. This combiner is designed as standard equipment for the CI 120-200G/S VOR/LOC/GS VHF blade antenna set and is suitable for internal aircraft mounting.

Specifications

• Weight:
  0.10 lb
• Height:
  0.97 in
• Frequency:
  108–118 MHz 329–335 MHz
• VSWR:
  1.5:1, max
• Power Split:
  3 dB
• Isolation (Between Ports):
  20 dB
• Insertion Loss:
  1.0 dB
• Amplitude Balance:
  ± 0.5 dB
• Impedance:
  50 Ω
• Phase (Between Ports):
  180º ± 5
• Construction:
  Die Cast Aluminum
• Finish:
  Aluminum
• Connector:
  BNC Female
• Mounting Location:
  Internal

Product Codes

• Mfr Part No
  CI 120-3
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  SUBCOMPONENT OF A FAA TSO AUTHORIZATIN (CI 120G/S, TSO C34e, C36e, C40c)

Documentation

• CI 120-3 Data Sheet
• CI 120-3 Product Drawing
