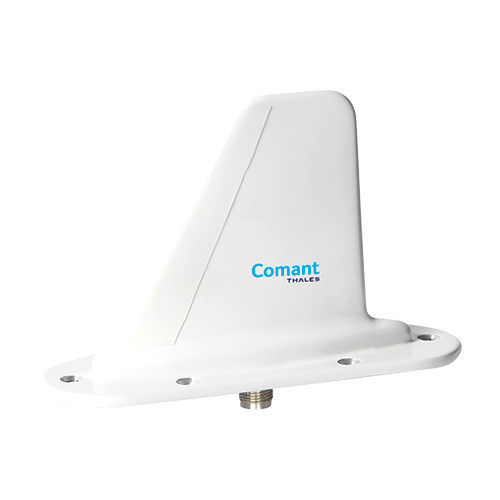

CI 150-500-L WIFI Datalink Antenna | 2400–2500 MHz & 5172–5820 MHz, 50 Ω, TNC Female Connector

Product Description

The CI 150-500-L WIFI Datalink antenna (EDMO# CI-150500L) is a six through-hole blade-style mount Wi-Fi antenna with a TNC port intended for Wi-Fi applications using 11.802 data protocol. These applications include the ability to receive wireless intranet and data transfer while the aircraft is parked on the ramp. This antenna is equivalent to the CI 150-250-L WIFI Datalink antenna just adds the 5170 to 5820 MHz frequency range. It is suitable for top mounting for both light and heavy fixed-wing single-engine and multi-engine aircraft, helicopters and business jets.

Specifications

• Weight:
  0.5 lb
• Height:
  3.4 in
• Frequency:
  2400–2475 MHz 5170–5820 MHz
• VSWR:
  1.6:1
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent of 1/4-inch wave stub
• Impedance:
  50Ω
• Efficiency:
  90%
• RF Power:
  100 W
• Finish:
  White polyurethane paint
• Connector:
  TNC Female
• Mounting:
  Six-hole mounting pattern
• FAA TSO:
  N/A
• RTCA Env.:
  DO-160C

Product Codes

• Mfr Part No
  CI 150-500-L

Documentation

• CI 150-500-L Data Sheet
• CI 150-500-L Product Drawing
