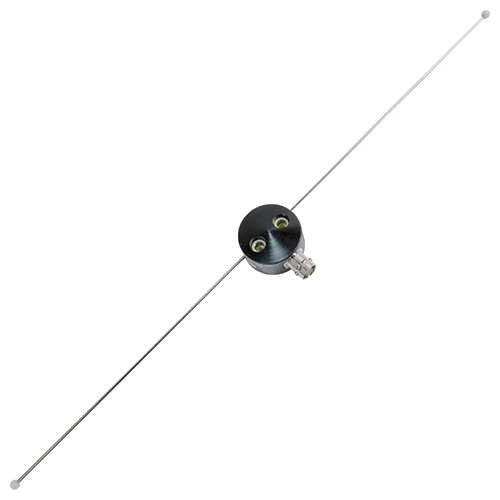

CI 193 VHF Navigation Glide Slope Antenna | 329–335 MHz, 50 Ω, BNC Connector

Product Description

The CI 193 antenna (EDMO# CI-193) is a two-through-hole-mount style VHF navigation glide slope dipole antenna with a BNC port. This antenna is designed for aircraft applications that need a glide slope signal and is suitable for internal mounting on light and heavy fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.15 lbs
• Height:
  1.5 in
• Frequency:
  329–335 MHz
• VSWR:
  2.5:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Dipole
• Impedance:
  50 Ω
• Power RF:
  Receive Only
• Gain:
  2.0 dB, Nominal
• Material:
  Delrin Housing/Brass Radiators
• Finish:
  Black/Nickel
• Connector:
  BNC
• Temperature Range:
  -55ºC to 85ºC
• FAA TSO:
  C34c
• RTCA MOPS:
  DO-192
• RTCA Environmental:
  DO-160

Product Codes

• Mfr Part No
  ci 193
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c

Documentation

• CI 193 Data Sheet
• CI 193 Product Drawing
