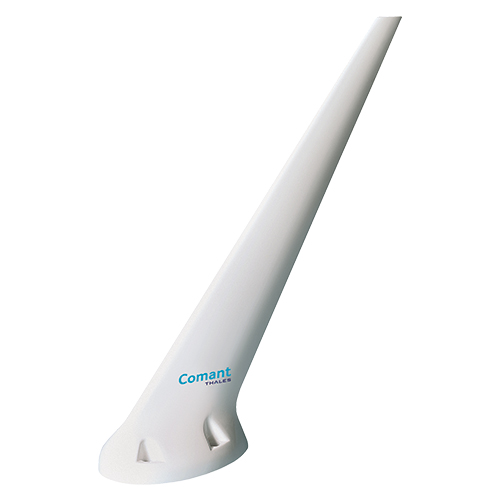

CI 268-5 VHF Communication Blade Antenna | 118–137MHz, 50 Ω, BNC Female Connector

Product Description

The CI-268-5 antenna (EDMO# CI-268-5) is a four-through-hole-mount style VHF communication blade antenna with a BNC port. This antenna is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  1.25 lb
• Height:
  14.1 in
• Frequency:
  118–137 MHz
• VSWR:
  2.9:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance RF:
  50 Ω
• Power RF:
  50 W
• Harmonic Rejection:
  80 dB
• Material:
  Molded Glass Filled Nylon
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC Female
• Temperature:
  -55ºC to 85ºC
• Altitude:
  35,000 ft
• Airspeed:
  325 KTAS, max at sea level
• Mounting:
  Four-hole external
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 268-5
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d INCOMPLETE SYSTEM

Documentation

• CI 268-5 Data Sheet
• CI 268-5 Product Drawing
