CI 2680-216 VHF/XM Weather & Radio Antenna | 118–137 MHz (VHF), 2332.5–2345.0 MHz (XM), 25 dB Gain, 50 Ω, BNC & TNC Connectors

Product Description

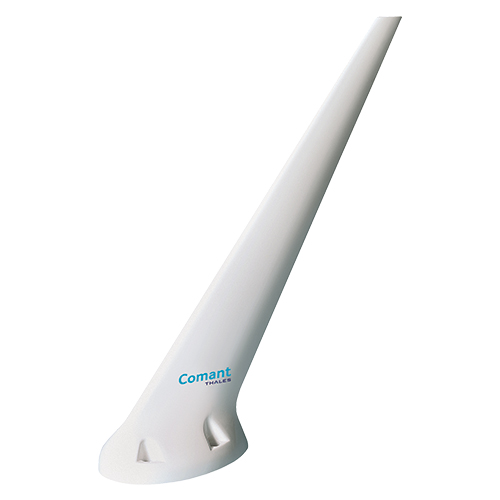

The CI 2680-216 ComDat antenna (EDMO# CI-2680216) is a four-through-hole-mount style VHF/XM Weather & Radio whip antenna with BNC and TNC ports. This antenna covers both VHF communication and XM frequencies. It is designed to be used with Garmin XM panel mount systems and is suitable for top mounting on both light and heavy fixed-wing single-engine aircraft and helicopters.

Specifications

• Weight:
  1.25 lb
• Connectors:
  VHF: BNC XM: TNC
• FAA TSO:
  C169
• RTCA Environmental:
  DO-160D
• VHF SPECIFICATIONS:
• Frequency:
  118–137 MHz
• VSWR:
  2.9:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power Rating:
  50 W
• XM WEATHER DATA SPECIFICATION:
• Frequency:
  2332.5–2345.0 MHz
• VSWR:
  2.0:1
• Polarization:
  LHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  25 ± 2 dB
• DC Voltage:
  3.6–24 VDC
• DC Current:
  45–55 mA

Product Codes

• Mfr Part No
  CI 2680-216
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 2680-216 Data Sheet
• CI 2680-216 Product Drawing
