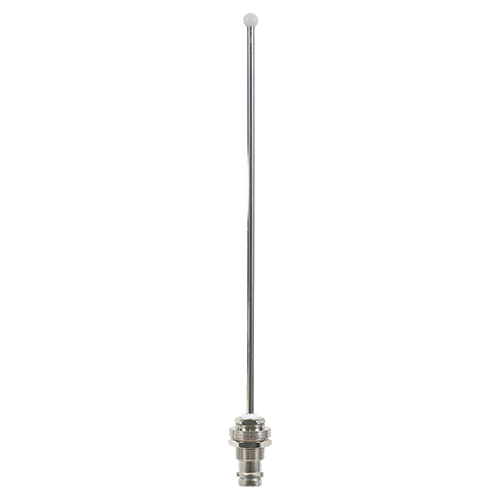

CI 271 UHF Communications Antenna | 400–430 MHz, 50 Ω, BNC Female Connector

Product Description

The CI 271 antenna (EDMO# CI-271) is a single-hole-mount style UHF Communication stub antenna with a BNC port. This antenna is designed to support the 400–430 MHz frequency range and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.18 lb
• Height:
  7.0 in
• Frequency:
  400–430 MHz
• VSWR:
  1.8:1
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to 1/4 Wave Stub
• Impedance:
  50 Ω
• RF Power:
  50 W
• Material:
  Nickel Plated Brass
• Finish:
  Tin-Nickel Alloy
• Connector:
  BNC Female
• FAA TSO:
  N/A

Product Codes

• Mfr Part No
  CI 271
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 271 Data Sheet
• CI 271 Product Drawing
